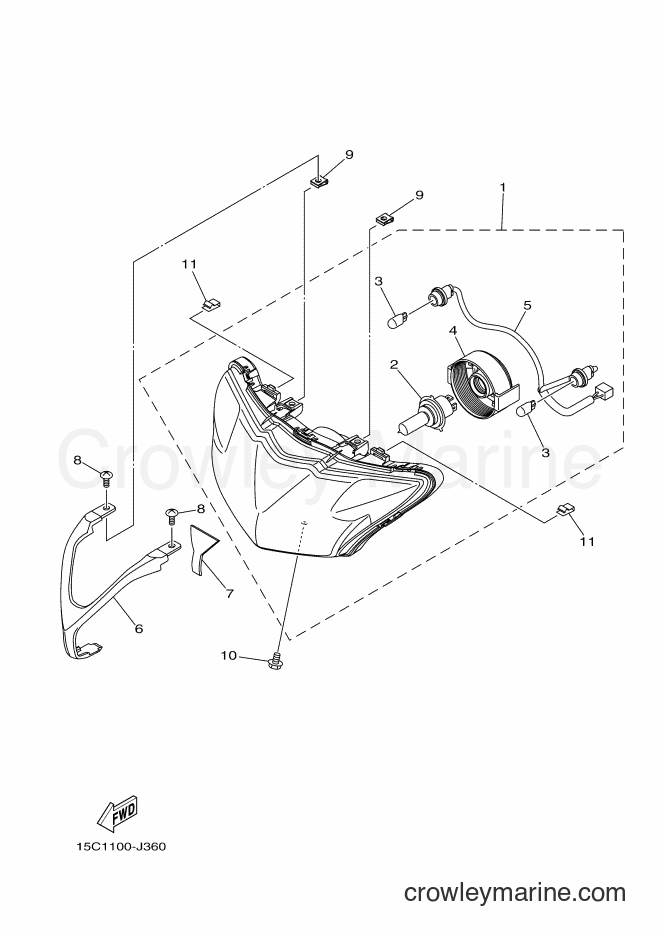

2010 Scooter TK115 - TK115 (15C1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TK115 (15C1) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB, HEADLIGHT (12V 35/35W)
Price unavailable
3
Required: 2
. BULB (12V-3.4W)
Price unavailable
4
Required: 1
. COVER, SOCKET
Price unavailable
5
Required: 1
. CORD ASSY
Price unavailable
6
Required: 1
COVER, SOCKET
Price unavailable
7
Required: 1
DAMPER, HEADLIGHT
Price unavailable
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
9
Required: 2
NUT, SPRING
Price unavailable
11
Required: 2
CLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
