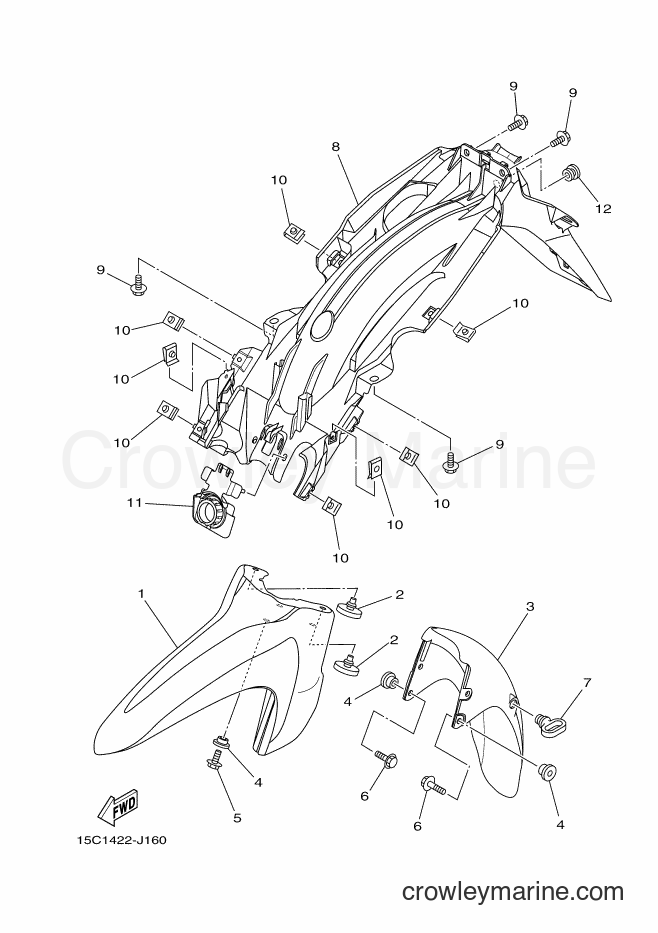

2010 Scooter TK115 - TK115 (15C1) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TK115 (15C1) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 2
DAMPER 1
Price unavailable
3
Required: 1
FENDER, FRONT 2
Price unavailable
COLLAR
4
Yamaha Motors
COLLAR90387-06857-00
Required: 7
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
BOLT W/PLAIN WASHER
5
Yamaha Motors
BOLT W/PLAIN WASHER97527-06516-00
Required: 3
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Bolt with Washer
6
Yamaha Motors
Bolt with Washer90119-06051-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
HOLDER, CABLE
Price unavailable
8
Required: 1
FENDER, REAR
Price unavailable
Bolt with Washer
9
Yamaha Motors
Bolt with Washer90119-06054-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.70
$0.60
You save $0.10
More details
10
Required: 8
NUT, SPRING
Price unavailable
11
Required: 1
FLAP
Price unavailable
Grommet
12
Yamaha Motors
Grommet90480-13567-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
