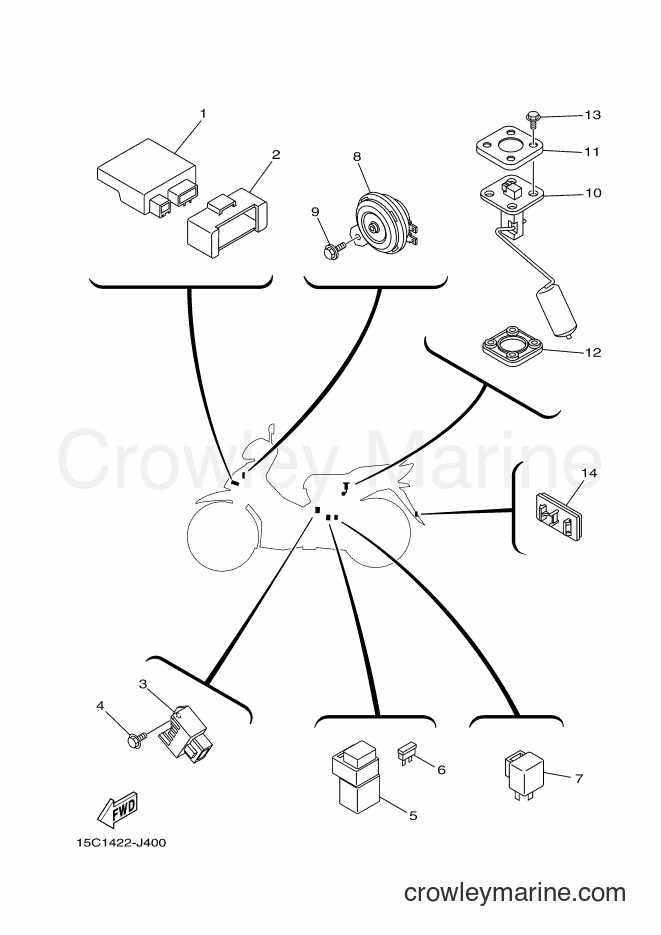

2010 Scooter TK115 - TK115 (15C1) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TK115 (15C1) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT COMP.
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
4
Yamaha Motors
Flange Bolt95027-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
5
Required: 1
STARTER RELAY ASSY
Price unavailable
6
Required: 1
FUSE (7.5A)
Price unavailable
7
Required: 1
FLASHER RELAY ASSY
Price unavailable
8
Required: 1
HORN
Price unavailable
10
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
11
Required: 1
RETAINER
Price unavailable
12
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt With Washer
13
Yamaha Motors
Bolt With Washer90119-05193-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
14
Required: 1
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
