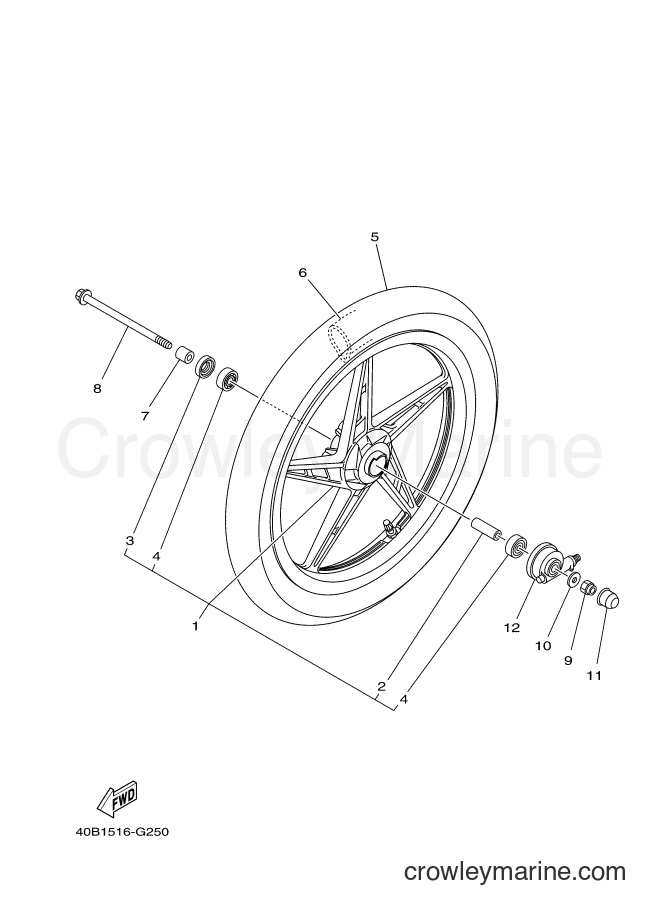

2010 Scooter T110C - T110C (40B2) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110C (40B2) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
. SPACER
Price unavailable
Oil Seal
3
Yamaha Motors
Oil Seal93106-20808-00
Required: 1
. OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
BEARING
4
Yamaha Motors
BEARING93306-300Y4-00
Required: 2
. BEARING
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
5
Required: 1
TIRE (70/90-17 M/C 38P D104F)
Price unavailable
5
Required: 1
TIRE (70/90-17 M/C 38H HF314A)
Price unavailable
6
Required: 1
TUBE (70-80/90-17 TR4)
Price unavailable
6
Required: 1
TUBE (2.50/2.75, 70-80/90-17)
Price unavailable
517 F. WHEEL COLLAR
7
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
AXLE, WHEEL
Price unavailable
9
Required: 1
NUT, SELF-LOCKING
Price unavailable
Plain Washer
10
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
CAP
Price unavailable
12
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
