2010 Scooter AL125 - AL125 (44D1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

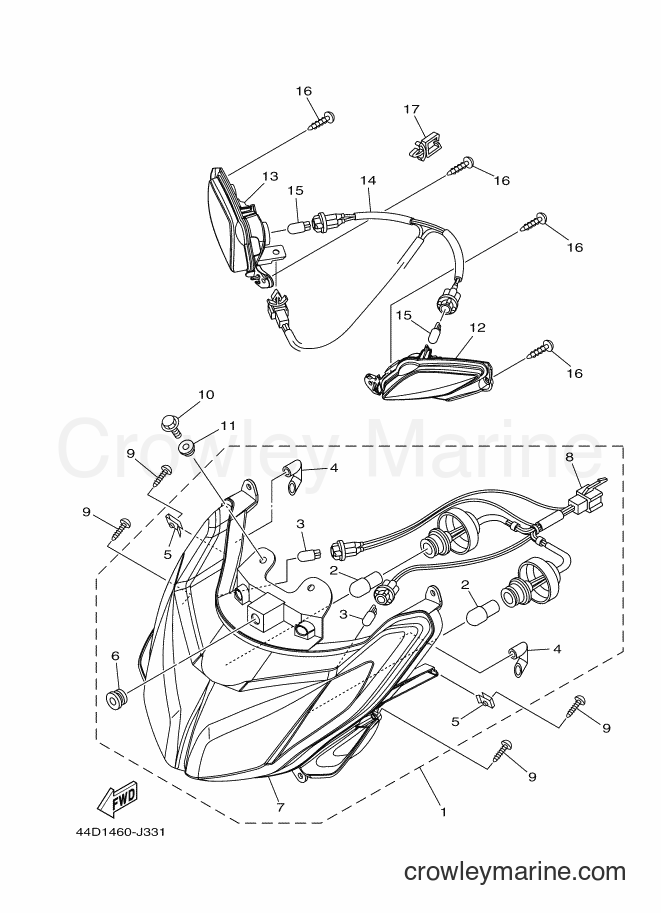

Yamaha Motors AL125 (44D1) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 2
. BULB, HEADLIGHT (12V 25/25W)
Price unavailable
3
Required: 2
. BULB, FLASHER (12V-10W)
Price unavailable
4
Required: 2
. CAP
Price unavailable
6
Required: 1
. GROMMET
Price unavailable
7
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
8
Required: 1
. CORD ASSY
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 8
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Bolt with Washer
10
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
COLLAR
11
Yamaha Motors
COLLAR90387-07023-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
12
Required: 1
PILOT LIGHT ASSY 1
Price unavailable
13
Required: 1
PILOT LIGHT ASSY 2
Price unavailable
14
Required: 1
CORD ASSY
Price unavailable
15
Required: 2
BULB (12V-3.4W)
Price unavailable
Truss Screw
16
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
17
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
