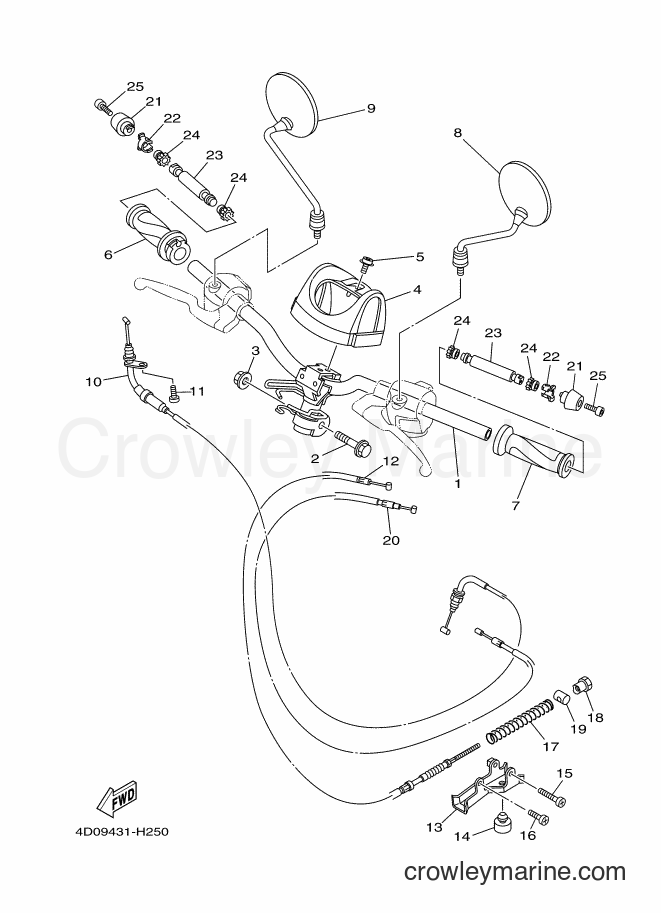

2010 Scooter AF115S - AF115S (20B2) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115S (20B2) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
1
Required: 1
HANDLE COMP. (1170,VYRC4)
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
COVER,HAND,.UPPER 1(0903,SMX)
Price unavailable
4
Required: 1
COVER,HAND,UPPER 1(1124,WM6)
Price unavailable
4
Required: 1
COVER,HAND,.UPPER 1(CR)
Price unavailable
5
Required: 1
SCREW, WITH WASHER
Price unavailable
6
Required: 1
GRIP ASSY (GRAY)
Price unavailable
6
Required: 1
GRIP ASSY (BLACK)
Price unavailable
6
Required: 1
GRIP ASSY (BROWN)
Price unavailable
7
Required: 1
GRIP (GRAY)
Price unavailable
7
Required: 1
GRIP (BROWN)
Price unavailable
7
Required: 1
GRIP (BLACK)
Price unavailable
8
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
9
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
10
Required: 1
CABLE, THROTTLE 1
Price unavailable
12
Required: 1
CABLE, BRAKE
Price unavailable
13
Required: 1
HOLDER, WIRE
Price unavailable
14
Required: 1
STOPPER
Price unavailable
Pan Screw
15
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.22
$2.74
You save $0.48
More details
17
Required: 1
SPRING, COMPRESSION
Price unavailable
Special Shape Nut
18
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
20
Required: 1
CABLE, STARTER 1
Price unavailable
21
Required: 2
END, GRIP
Price unavailable
21
Required: 2
END, GRIP (1124,WM6)
Price unavailable
21
Required: 2
END, GRIP (1170,VYRC4)
Price unavailable
22
Required: 2
STOPPER
Price unavailable
23
Required: 2
WEIGHT
Price unavailable
Locating Damper 1
24
Yamaha Motors
Locating Damper 15YP-F622F-00-00
Required: 4
DAMPER, LOCATING 1
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
Bolt (4MY)
25
Yamaha Motors
Bolt (4MY)91317-06035-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
