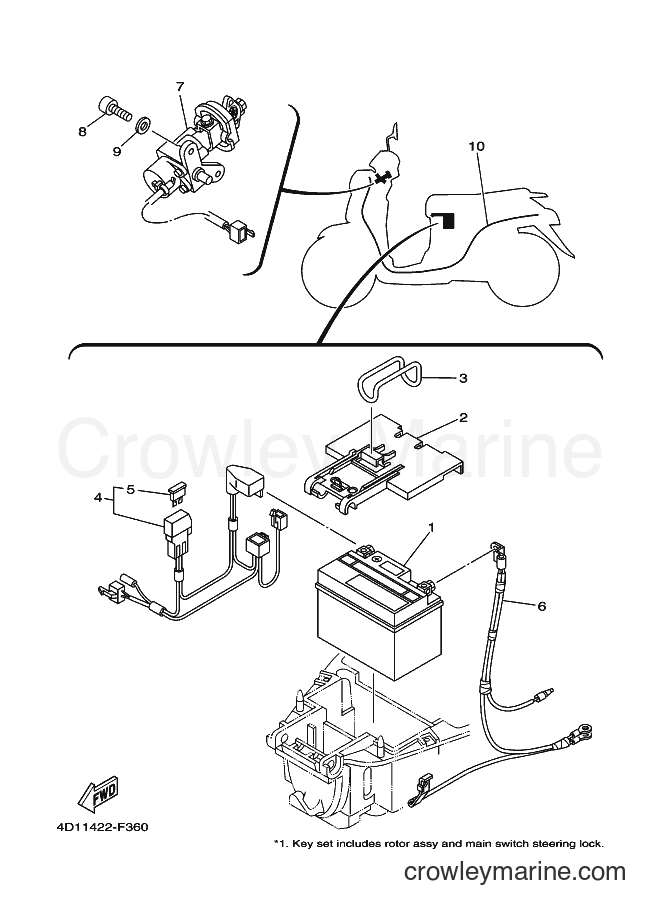

2010 Scooter AF115C - AF115C (23C3) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115C (23C3) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (GS GTZ5S)
Price unavailable
2
Required: 1
COVER, BATTERY
Price unavailable
3
Required: 1
BAND, BATTERY
Price unavailable
4
Required: 1
FUSE HOLDER ASSY
Price unavailable
5
Required: 1
. FUSE (10A)
Price unavailable
6
Required: 1
WIRE, MINUS LEAD
Price unavailable
7
Required: 1
KEY SET
Price unavailable
7
Required: 1
MAIN SWITCH COMP.
Price unavailable
BOLT
8
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
9
Required: 2
WASHER, PLATE
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
