2009 Scooter YP250R - YP250R (1C07) [020] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

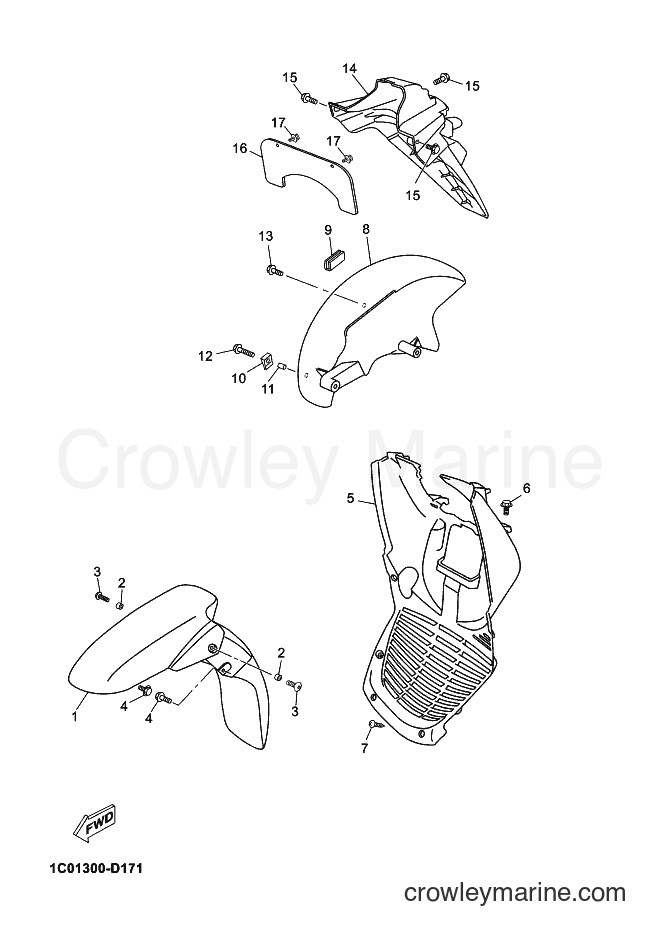

Yamaha Motors YP250R (1C07) [020] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 2
COLLAR
Price unavailable
3
Required: 2
SCREW, WITH WASHER
Price unavailable
4
Required: 2
BOLT
Price unavailable
5
Required: 1
FENDER, INNER
Price unavailable
Flange Bolt
6
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
7
Required: 6
SCREW, TAPPING
Price unavailable
8
Required: 1
FENDER, REAR
Price unavailable
9
Required: 1
DAMPER
Price unavailable
10
Required: 1
NUT, SPRING
Price unavailable
11
Required: 1
COLLAR
Price unavailable
12
Required: 1
BOLT, FLANGE
Price unavailable
13
Required: 1
BOLT
Price unavailable
14
Required: 1
BRACKET, LICENSE
Price unavailable
15
Required: 3
BOLT
Price unavailable
16
Required: 1
PLATE, FLAP FITTING 1
Price unavailable
Rivet
17
Yamaha Motors
Rivet90269-07076-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
