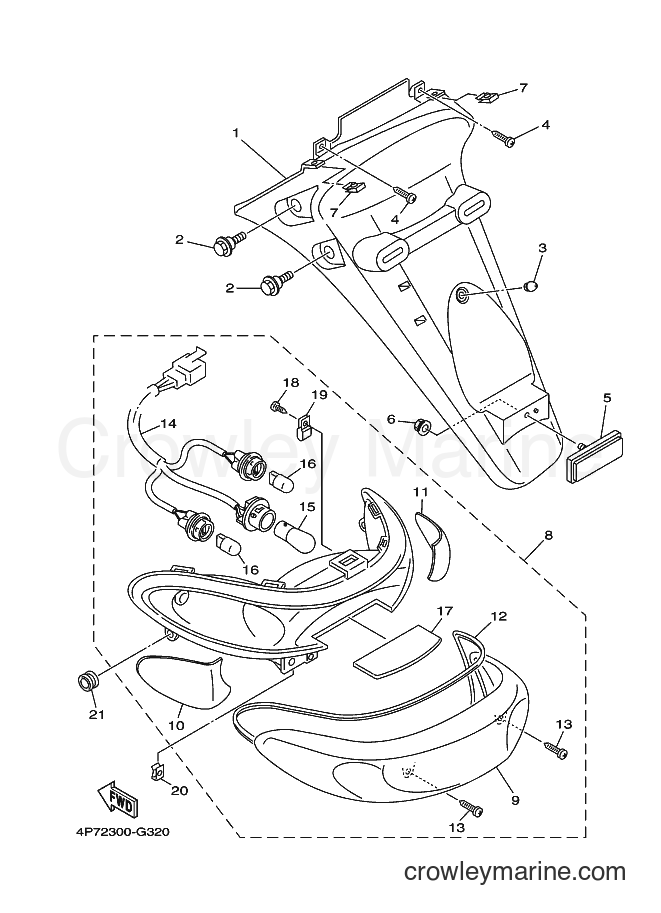

2009 Scooter XC125E - XC125E (4P75) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125E (4P75) [010] - TAILLIGHT
Change View:
1
Required: 1
BRACKET, LICENSE
Price unavailable
2
Required: 4
BOLT
Price unavailable
3
Required: 1
DAMPER 2
Price unavailable
Truss Screw
4
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
3Y6-85130-01-00
5
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 1
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
U Flange Nut
6
Yamaha Motors
U Flange Nut95607-05200-00
Required: 1
NUT, S/L FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
TAILLIGHT ASSY
Price unavailable
9
Required: 1
. LENS ASSY
Price unavailable
10
Required: 1
. LENS, INNER 1
Price unavailable
11
Required: 1
. LENS, INNER 2
Price unavailable
12
Required: 1
. GASKET, TAIL LENS
Price unavailable
13
Required: 2
. SCREW, LENS FITTING
Price unavailable
14
Required: 1
. SOCKET CORD ASSY
Price unavailable
15
Required: 1
. BULB, TAILLIGHT (12V-21/5W)
Price unavailable
16
Required: 2
. BULB, FLASHER (12V-16W)
Price unavailable
17
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
18
Required: 1
. SCREW
Price unavailable
19
Required: 1
. PLATE, SEAT BASE
Price unavailable
GROMMET, WATER TUBE (UPPER)
21
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14023-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
