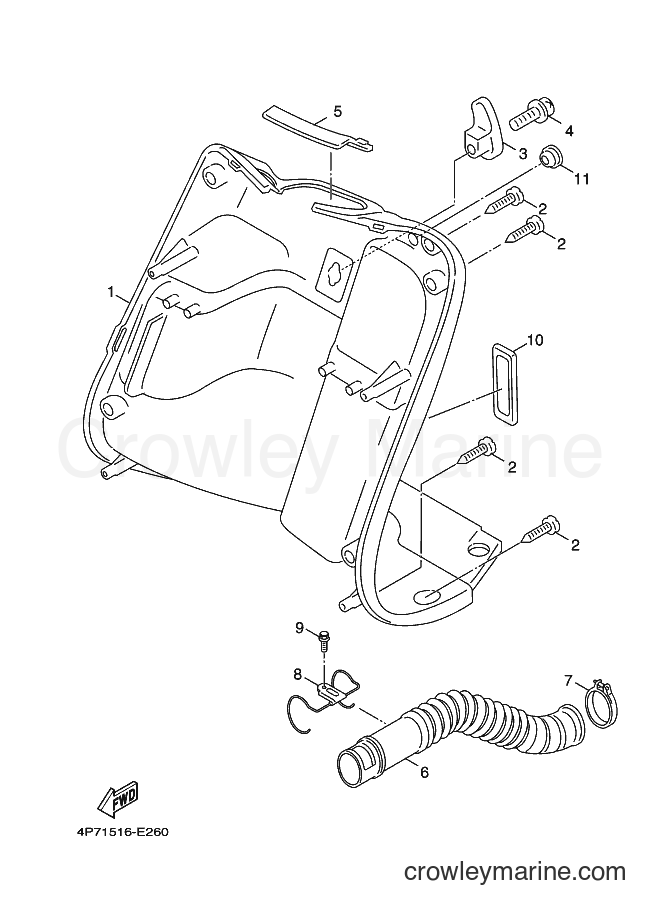

2009 Scooter XC125E - XC125E (4P75) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125E (4P75) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD ASSY
Price unavailable
3
Required: 1
HOOK 1
Price unavailable
Screw with Washer
4
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
COVER
Price unavailable
6
Required: 1
DUCT, AIR
Price unavailable
7
Required: 1
CLAMP, HOSE
Price unavailable
8
Required: 1
HOLDER, CABLE
Price unavailable
10
Required: 1
CAP
Price unavailable
11
Required: 1
PLUG, BLIND
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
