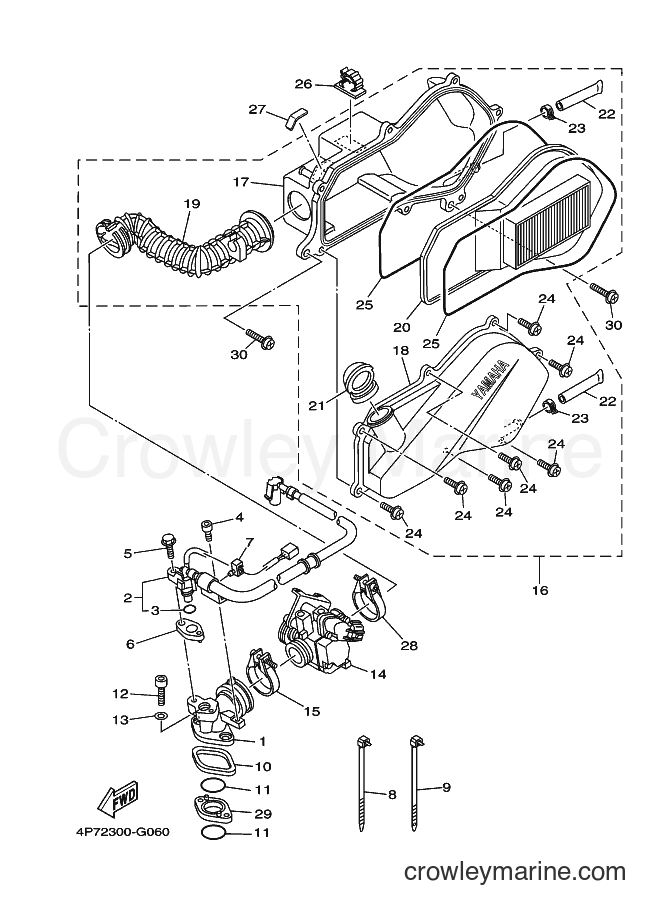

2009 Scooter XC125E - XC125E (4P74) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125E (4P74) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
PIPE INLET ASSEMBLY
Price unavailable
O-Ring
3
Yamaha Motors
O-Ring5CA-14147-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
Bolt (4MY)
4
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Flange Bolt
5
Yamaha Motors
Flange Bolt95817-06025-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
6
Required: 1
GASKET, MANIFOLD
Price unavailable
Clamp
7
Yamaha Motors
Clamp90464-08020-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
8
Required: 1
CLAMP 1
Price unavailable
9
Required: 1
CLAMP 2
Price unavailable
10
Required: 1
SEAL
Price unavailable
11
Required: 2
O-RING
Price unavailable
12
Required: 2
BOLT
Price unavailable
Plate Washer
13
Yamaha Motors
Plate Washer90201-06042-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
14
Required: 1
THROTTLE BODY ASSY
Price unavailable
15
Required: 1
BAND
Price unavailable
16
Required: 1
AIR CLEANER ASSY.
Price unavailable
17
Required: 1
. CASE, AIR CLEANER 1
Price unavailable
18
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
19
Required: 1
. JOINT, AIR CLEANER 1
Price unavailable
20
Required: 1
. ELEMENT, AIR CLEANER
Price unavailable
21
Required: 1
. DUCT
Price unavailable
22
Required: 2
. PIPE, DRAIN
Price unavailable
Clip (3YX)
23
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 2
. CLIP
Supersedes: 90467-13813-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PAN HEAD SCREW
24
Yamaha Motors
PAN HEAD SCREW97607-06220-00
Required: 7
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
25
Required: 2
. SEAL
Price unavailable
Clamp
26
Yamaha Motors
Clamp90464-20021-00
Required: 1
CLAMP
Supersedes: 90464-20003-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
27
Required: 1
PROTECTOR
Price unavailable
28
Required: 1
BAND
Price unavailable
29
Required: 1
JOINT
Price unavailable
PAN HEAD SCREW
30
Yamaha Motors
PAN HEAD SCREW97607-06225-00
Required: 2
SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
