All diagrams for this model

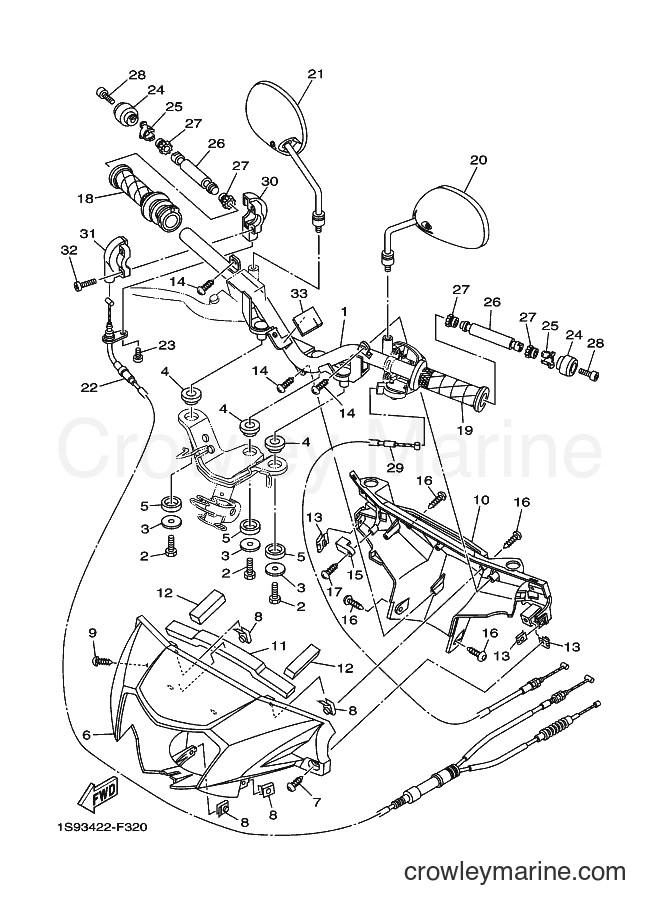

2009 Scooter T135SEC - T135SEC (1S97) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135SEC (1S97) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
Bolt
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 3
DAMPER 1
Price unavailable
5
Required: 3
DAMPER 2
Price unavailable
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
7
Required: 1
SCREW, ROUND TAPPING
Price unavailable
8
Required: 4
NUT, SPRING
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
10
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
11
Required: 1
DAMPER, LOCATING 1
Price unavailable
12
Required: 2
DAMPER, LOCATING
Price unavailable
13
Required: 3
NUT, SPRING
Price unavailable
15
Required: 1
PROTECTOR 1
Price unavailable
16
Required: 4
SCREW, ROUND TAPPING
Price unavailable
Truss Screw
17
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
18
Required: 1
GRIP ASSY
Price unavailable
19
Required: 1
GRIP
Price unavailable
20
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
21
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
22
Required: 1
THROTTLE CABLE ASSY
Price unavailable
24
Required: 2
END, GRIP
Price unavailable
25
Required: 2
STOPPER
Price unavailable
26
Required: 2
WEIGHT
Price unavailable
27
Required: 4
DAMPER, LOCATING 1
Price unavailable
29
Required: 1
CABLE, STARTER 1
Price unavailable
30
Required: 1
CAP, GRIP UPPER
Price unavailable
31
Required: 1
CAP, GRIP UNDER
Price unavailable
Pan Head Screw
32
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
33
Required: 1
DAMPER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
