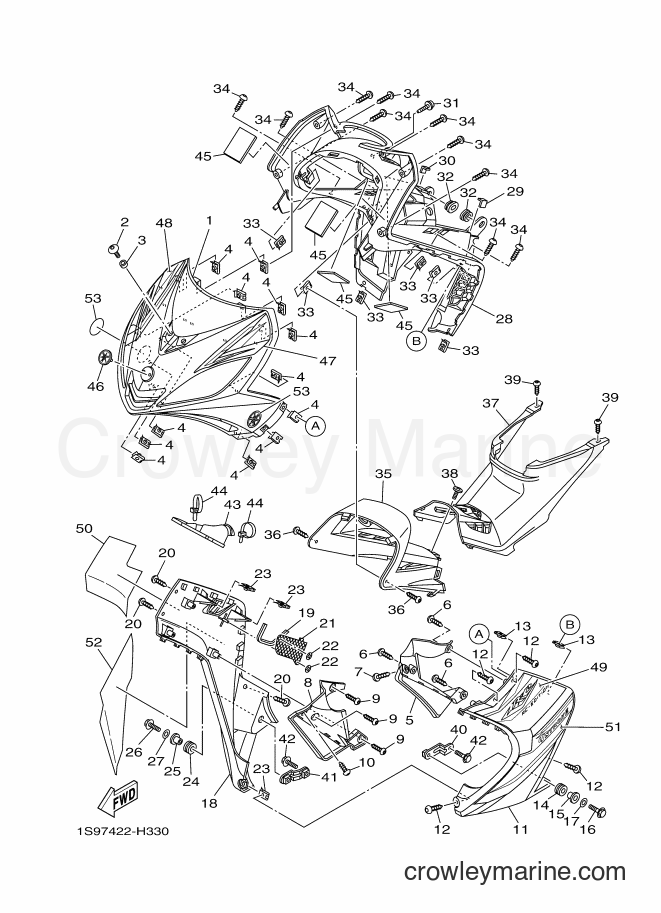

2009 Scooter T135SEC - T135SEC (1S97) [010] LEG SHIELD diagram
![Yamaha Motors T135SEC (1S97) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/CxeC4yoj.png)
1
Required: 1
PANEL, FRONT
Price unavailable
2
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06200-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$8.07
You save $1.42
3
Required: 2
COLLAR
Price unavailable
4
Required: 12
NUT, SPRING
Price unavailable
5
Required: 1
GUIDE, AIR 1
Price unavailable
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
7
Required: 1
SCREW, ROUND TAPPING
Price unavailable
8
Required: 1
GUIDE, AIR 2
Price unavailable
9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
10
Required: 1
SCREW, ROUND TAPPING
Price unavailable
11
Required: 1
LEG SHIELD 1
Price unavailable
12
Required: 4
SCREW, ROUND TAPPING
Price unavailable
13
Required: 2
NUT, SPRING
Price unavailable
14
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
15
Required: 1
COLLAR
Price unavailable
16
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
17
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
$3.02
You save $0.53
18
Required: 1
LEG SHIELD 2
Price unavailable
19
Required: 1
DAMPER
Price unavailable
20
Required: 3
SCREW, ROUND TAPPING
Price unavailable
21
Required: 1
CAP
Price unavailable
$0.81
You save $0.14
23
Required: 3
NUT, SPRING
Price unavailable
24
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
25
Required: 1
COLLAR
Price unavailable
26
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
27
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
$3.02
You save $0.53
28
Required: 1
PANEL, INNER 1
Price unavailable
29
Required: 1
SEAL 1
Price unavailable
30
Required: 1
SEAL 2
Price unavailable
31
Required: 1
SCREW, WITH WASHER
Price unavailable
32
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
$3.95
You save $0.70
33
Required: 6
NUT, SPRING
Price unavailable
34
Required: 10
SCREW, ROUND TAPPING
Price unavailable
35
Required: 1
COVER 1
Price unavailable
36
Required: 2
SCREW, ROUND TAPPING
Price unavailable
37
Required: 1
COVER 2
Price unavailable
38
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
$8.07
You save $1.42
39
Required: 2
SCREW, ROUND TAPPING
Price unavailable
40
Required: 1
STAY 1
Price unavailable
41
Required: 1
STAY 2
Price unavailable
42
Yamaha Motors
Flange Bolt95817-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
43
Required: 1
PLATE
Price unavailable
$1.57
You save $0.28
45
Required: 4
DAMPER
Price unavailable
46
Required: 1
EMBLEM 1
Price unavailable
47
Required: 1
GRAPHIC 41
Price unavailable
48
Required: 1
GRAPHIC 42
Price unavailable
49
Required: 1
GRAPHIC 43
Price unavailable
50
Required: 1
GRAPHIC 44
Price unavailable
51
Required: 1
GRAPHIC 45
Price unavailable
52
Required: 1
GRAPHIC 46
Price unavailable
53
Required: 2
TUNING FORK MARK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
