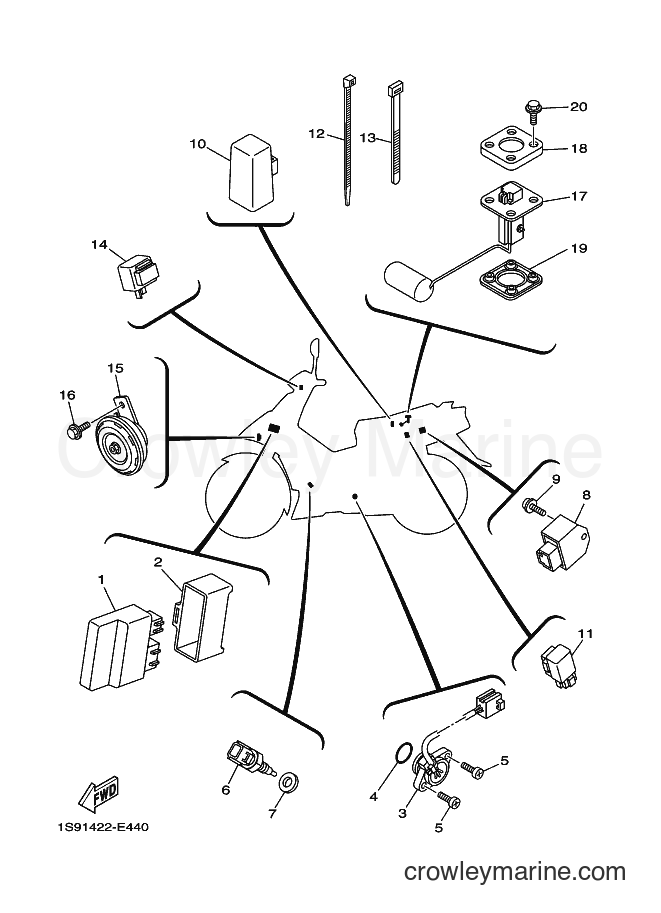

2009 Scooter T135SEC - T135SEC (1S97) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135SEC (1S97) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT COMP.
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
4
Required: 1
O-RING
Price unavailable
Thermosensor Assembly
6
Yamaha Motors
Thermosensor Assembly5YP-85790-00-00
Required: 1
THERMOSENSOR ASSY
Cross Ship
Leaves in 2-5 days
$70.99
$60.34
You save $10.65
More details
7
Required: 1
GASKET
Price unavailable
8
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
9
Required: 1
SCREW,WITH WASHER
Price unavailable
10
Required: 1
STARTER RELAY ASSY
Price unavailable
11
Required: 1
RELAY ASSY
Price unavailable
Clamp
12
Yamaha Motors
Clamp90464-50800-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
13
Required: 1
BAND, SWITCH CORD
Price unavailable
14
Required: 1
FLASHER RELAY ASSY
Price unavailable
15
Required: 1
HORN
Price unavailable
17
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
18
Required: 1
RETAINER
Price unavailable
19
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
20
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
