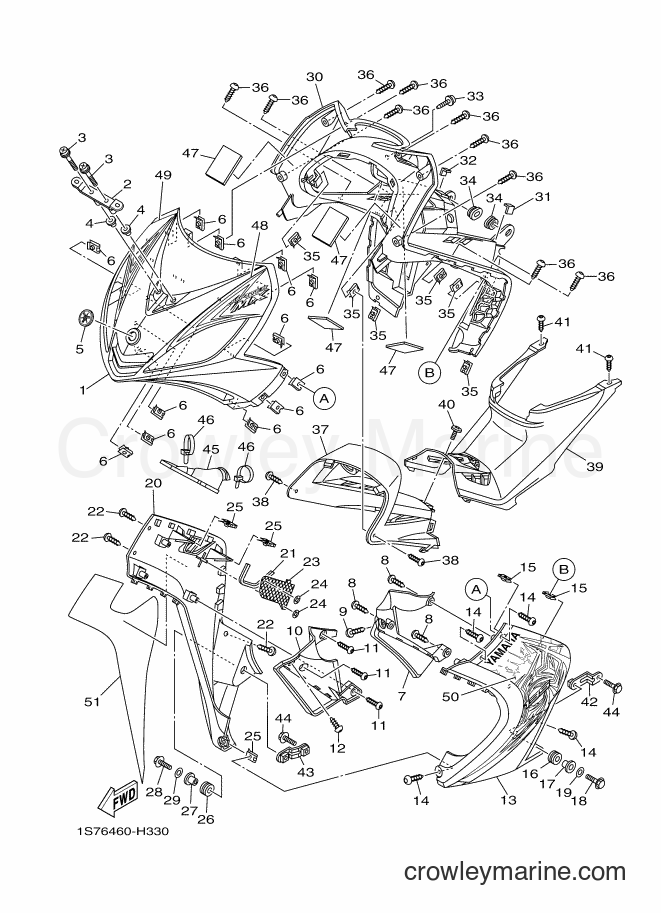

2009 Scooter T135SEC - T135SEC (1S76) [010] LEG SHIELD diagram
![Yamaha Motors T135SEC (1S76) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/4MjjkcDJ.png)
1
Required: 1
PANEL, FRONT
Price unavailable
2
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
3
Yamaha Motors
Flange Bolt95817-06035-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06035-00
$7.22
You save $1.27
4
Required: 2
COLLAR
Price unavailable
5
Required: 1
EMBLEM
Price unavailable
-50%
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 12
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
7
Required: 1
GUIDE, AIR 1
Price unavailable
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 1
SCREW, ROUND TAPPING
Price unavailable
10
Required: 1
GUIDE, AIR 2
Price unavailable
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
SCREW, ROUND TAPPING
Price unavailable
13
Required: 1
LEG SHIELD 1
Price unavailable
14
Required: 4
SCREW, ROUND TAPPING
Price unavailable
-50%
15
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
16
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
17
Required: 1
COLLAR
Price unavailable
18
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
19
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
$3.02
You save $0.53
20
Required: 1
LEG SHIELD 2
Price unavailable
21
Required: 1
DAMPER
Price unavailable
22
Required: 3
SCREW, ROUND TAPPING
Price unavailable
23
Required: 1
CAP
Price unavailable
$0.81
You save $0.14
-50%
25
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
26
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
27
Required: 1
COLLAR
Price unavailable
28
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
29
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
$3.02
You save $0.53
30
Required: 1
PANEL, INNER 1
Price unavailable
31
Required: 1
SEAL 1
Price unavailable
32
Required: 1
SEAL 2
Price unavailable
33
Required: 1
SCREW, WITH WASHER
Price unavailable
$3.95
You save $0.70
-50%
35
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
36
Required: 10
SCREW, ROUND TAPPING
Price unavailable
37
Required: 1
COVER 1
Price unavailable
38
Required: 2
SCREW, ROUND TAPPING
Price unavailable
39
Required: 1
COVER 2
Price unavailable
40
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
$8.07
You save $1.42
41
Required: 2
SCREW, ROUND TAPPING
Price unavailable
42
Required: 1
STAY 1
Price unavailable
43
Required: 1
STAY 2
Price unavailable
44
Yamaha Motors
Flange Bolt95817-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
45
Required: 1
PLATE
Price unavailable
46
Yamaha Motors
Band1UA-82591-00-00
Required: 2
CLAMP
Supersedes: 90465-13152-00
$4.67
You save $0.82
47
Required: 4
DAMPER
Price unavailable
48
Required: 1
GRAPHIC, 13
Price unavailable
49
Required: 1
GRAPHIC, 14
Price unavailable
50
Required: 1
GRAPHIC, 15
Price unavailable
51
Required: 1
GRAPHIC 16
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
