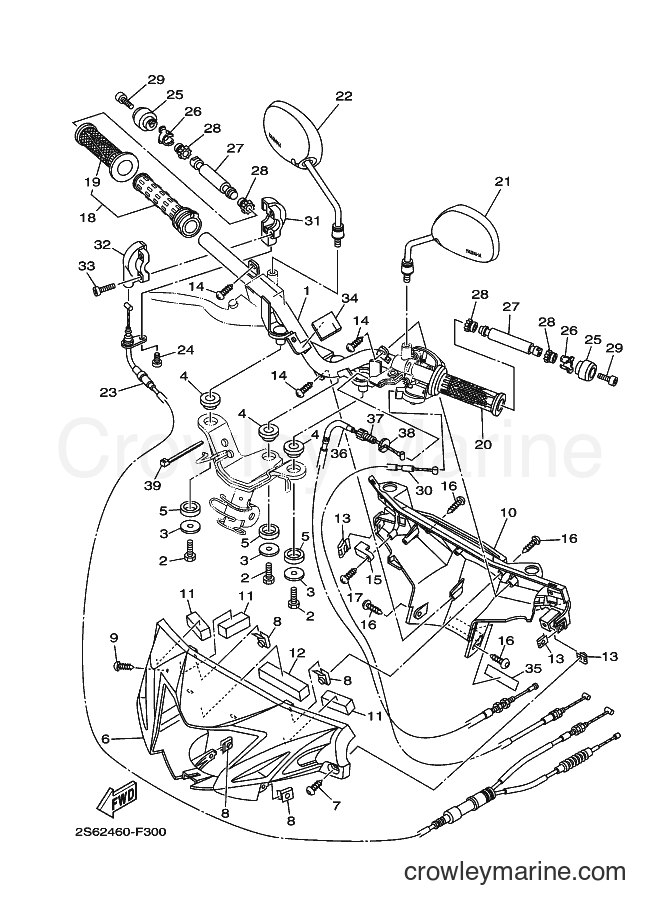

2009 Scooter T135HC - T135HC (2S65) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors T135HC (2S65) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/KS0lTklo.png)
1
Required: 1
HANDLE
Price unavailable
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
$8.07
You save $1.42
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
$8.07
You save $1.42
4
Required: 3
DAMPER 1
Price unavailable
5
Required: 3
DAMPER 2
Price unavailable
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
7
Required: 1
SCREW, ROUND TAPPING
Price unavailable
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
9
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
10
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
11
Required: 3
DAMPER, LOCATING
Price unavailable
12
Required: 1
DAMPER
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
15
Required: 1
PROTECTOR 1
Price unavailable
16
Required: 4
SCREW, ROUND TAPPING
Price unavailable
17
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
18
Required: 1
GRIP ASSY
Price unavailable
19
Required: 1
GRIP (RIGHT)
Price unavailable
20
Required: 1
GRIP
Price unavailable
21
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
22
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
23
Required: 1
THROTTLE CABLE ASSY
Price unavailable
24
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
25
Required: 2
END, GRIP
Price unavailable
$3.40
You save $0.40
27
Required: 2
WEIGHT
Price unavailable
28
Yamaha Motors
Locating Damper 15YP-F622F-00-00
Required: 4
DAMPER, LOCATING 1
Supersedes: 1S7-F622F-00-00
$2.00
You save $0.35
-50%
In stock
Only 2 remaining
$3.25
You save $3.25
30
Required: 1
CABLE, STARTER 1
Price unavailable
31
Required: 1
CAP, GRIP UPPER
Price unavailable
32
Required: 1
CAP, GRIP UNDER
Price unavailable
33
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
34
Required: 1
DAMPER 1
Price unavailable
35
Required: 1
LABEL, WARNING
Price unavailable
36
Required: 1
CABLE, CLUTCH
Price unavailable
37
Yamaha Motors
BOLT90123-08002-00
Required: 1
BOLT
Supersedes: 90123-08046-00
$8.92
You save $1.57
38
Yamaha Motors
Nut90179-08030-00
Required: 1
NUT
Supersedes: 90179-08148-00
$5.09
You save $0.90
39
Yamaha Motors
Band1UA-82591-00-00
Required: 1
CLAMP
Supersedes: 90465-13152-00
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
