All diagrams for this model

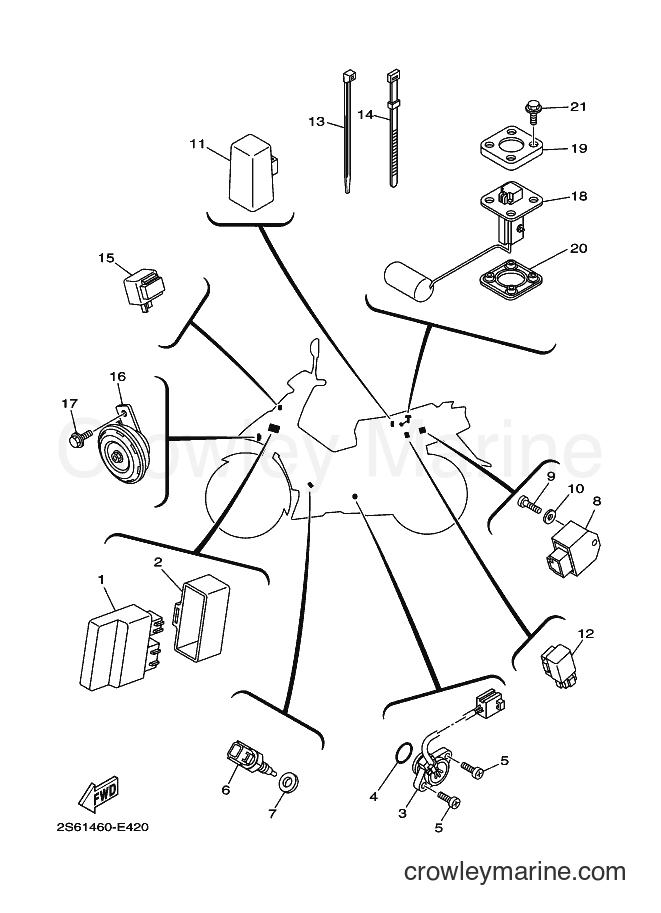

2009 Scooter T135HC - T135HC (2S65) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135HC (2S65) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
O-RING (1S71)
4
Yamaha Motors
O-RING (1S71)93210-21801-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
6
Required: 1
THERMOSENSOR ASSY
Price unavailable
7
Required: 1
GASKET
Price unavailable
8
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Screw
9
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
11
Required: 1
STARTER RELAY ASSY
Price unavailable
12
Required: 1
RELAY ASSY
Price unavailable
Band
13
Yamaha Motors
Band1UA-82591-00-00
Required: 3
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
14
Required: 1
BAND, SWITCH CORD
Price unavailable
15
Required: 1
FLASHER RELAY ASSY
Price unavailable
16
Required: 1
HORN
Price unavailable
18
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
19
Required: 1
RETAINER
Price unavailable
20
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
21
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
