2009 Scooter T115 - T115 (5D91) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

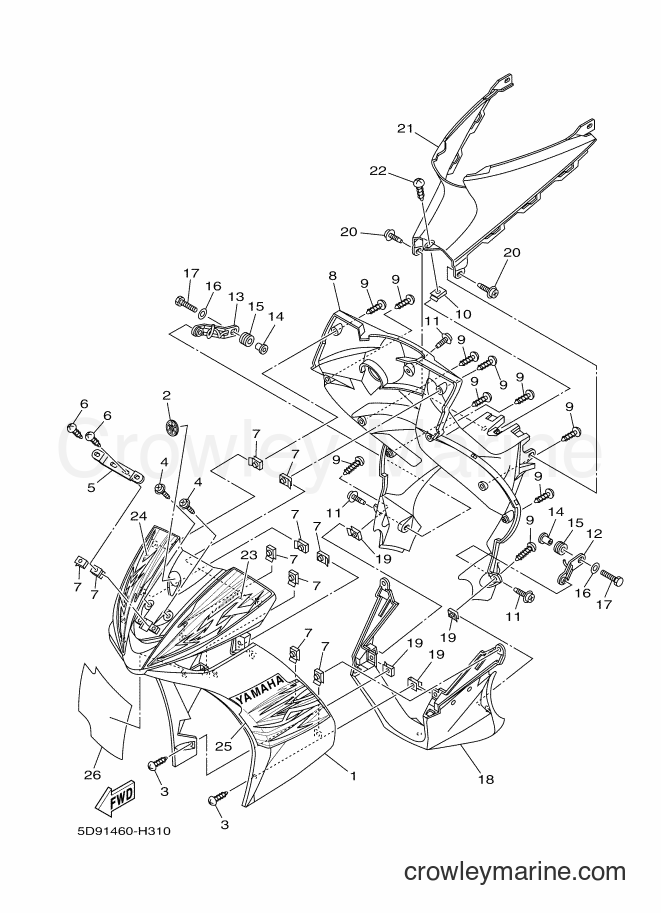

Yamaha Motors T115 (5D91) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
EMBLEM 1
Price unavailable
4
Required: 2
SCREW, WITH WASHER
Price unavailable
5
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
Truss Screw
6
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 1
LEG SHIELD 2
Price unavailable
11
Required: 3
SCREW, WITH WASHER
Price unavailable
12
Required: 1
STAY 1
Price unavailable
13
Required: 1
STAY 2
Price unavailable
14
Required: 2
COLLAR
Price unavailable
15
Required: 2
GROMMET
Price unavailable
Plate Washer
16
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Hexagon Bolt
17
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97007-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
18
Required: 1
COVER, LOWER
Price unavailable
20
Required: 2
SCREW, WITH WASHER
Price unavailable
21
Required: 1
COVER 2
Price unavailable
23
Required: 1
GRAPHIC, 13
Price unavailable
24
Required: 1
GRAPHIC 14
Price unavailable
25
Required: 1
GRAPHIC15
Price unavailable
26
Required: 1
GRAPHIC 16
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
