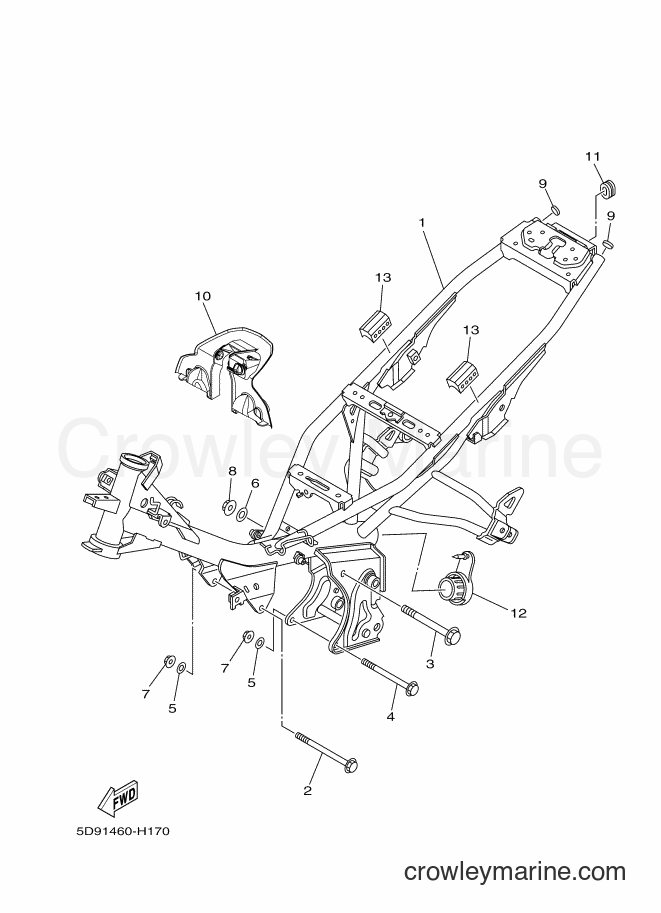

2009 Scooter T110LE - T110LE (35D1) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110LE (35D1) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
BOLT, FLANGE
Price unavailable
3
Required: 1
BOLT, FLANGE
Price unavailable
Flange Bolt (4EM)
4
Yamaha Motors
Flange Bolt (4EM)95817-08120-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Plain Washer
5
Yamaha Motors
Plain Washer90201-086P8-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Plain Washer
6
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 2
NUT
Price unavailable
8
Required: 1
NUT
Price unavailable
9
Required: 2
COVER 2
Price unavailable
10
Required: 1
COVER 4
Price unavailable
11
Required: 1
GROMMET
Price unavailable
12
Required: 1
CAP, MAIN PIPE
Price unavailable
13
Required: 2
DAMPER 2
Price unavailable
