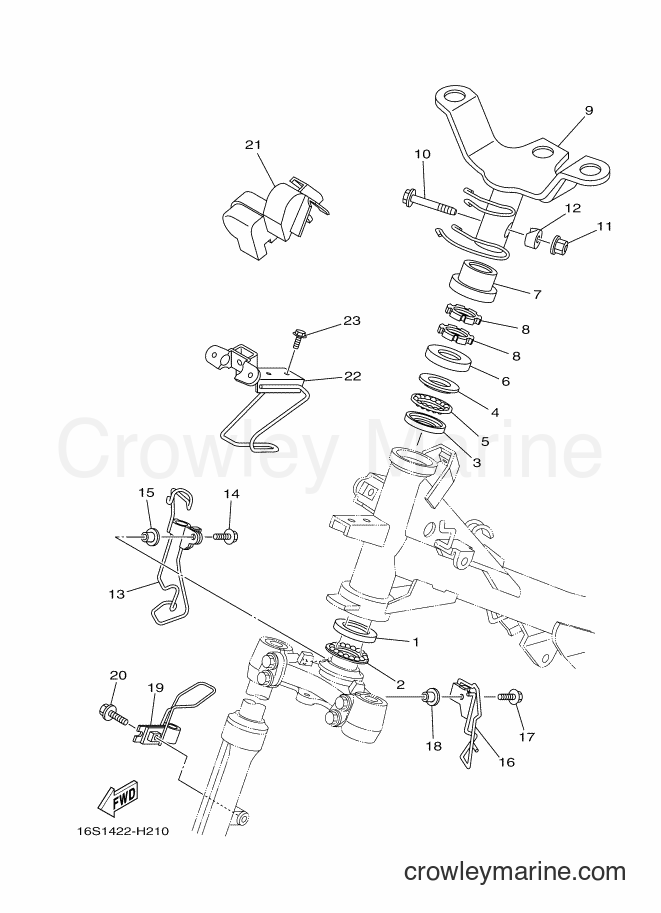

2009 Scooter T110LE - T110LE (16S2) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110LE (16S2) [010] - STEERING
Change View:
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
RETAINER, BALL BEARING
Price unavailable
3
Required: 1
RACE, BALL 2
Price unavailable
4
Required: 1
RACE, BALL 1
Price unavailable
5
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Required: 1
COVER, BALL RACE 2
Price unavailable
7
Required: 1
COVER, BALL RACE 1
Price unavailable
Nut
8
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
9
Required: 1
BRACKET, HANDLE
Price unavailable
Washer Based Bolt
10
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
FLANGE NUT (95704-10500-00)
11
Yamaha Motors
FLANGE NUT (95704-10500-00)90179-10658-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
12
Required: 1
COLLAR
Price unavailable
13
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
Washer Based Bolt
14
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 1
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Collar
15
Yamaha Motors
Collar90387-06681-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
16
Required: 1
GUIDE
Price unavailable
Washer Based Bolt
17
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 1
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Collar
18
Yamaha Motors
Collar90387-06681-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
19
Required: 1
GUIDE, CABLE
Price unavailable
21
Required: 1
PROTECTOR
Price unavailable
22
Required: 1
STAY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
