2009 Scooter T110E - T110E (5B98) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

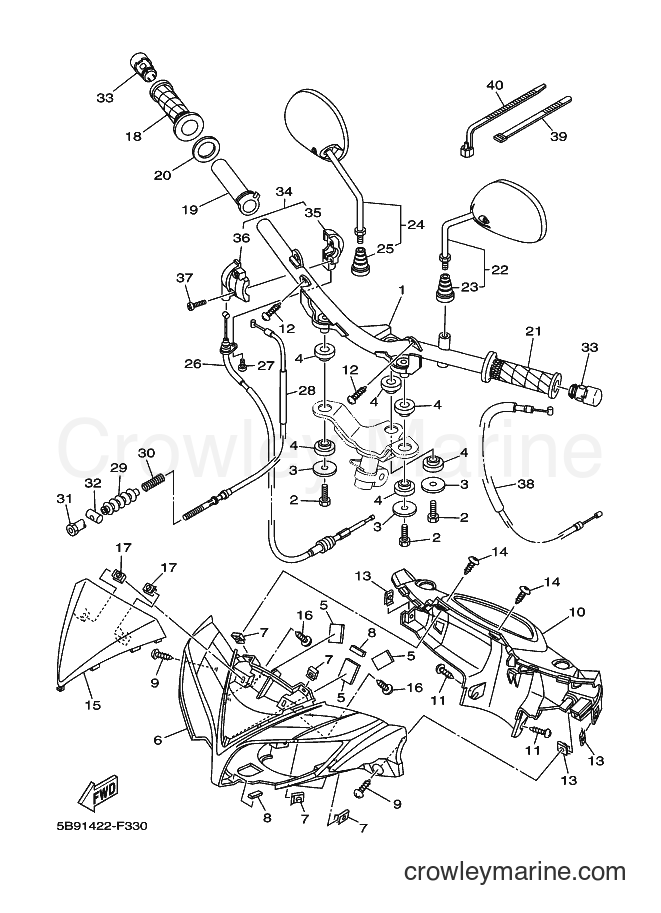

Yamaha Motors T110E (5B98) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
Bolt
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 6
DAMPER
Price unavailable
5
Required: 3
DAMPER
Price unavailable
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
7
Required: 4
NUT, SPRING
Price unavailable
8
Required: 2
DAMPER
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
10
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
Truss Screw
11
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Truss Screw
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 3
NUT, SPRING
Price unavailable
14
Required: 2
SCREW, ROUND TAPPING
Price unavailable
15
Required: 1
COVER
Price unavailable
Truss Screw
16
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
17
Required: 2
NUT, SPRING
Price unavailable
18
Required: 1
GRIP (RIGHT)
Price unavailable
18
Required: 1
GRIP (RIGHT)
Price unavailable
19
Required: 1
TUBE, THROTTLE GUIDE
Price unavailable
Plate Washer
20
Yamaha Motors
Plate Washer90201-261L1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
21
Required: 1
GRIP
Price unavailable
21
Required: 1
GRIP
Price unavailable
22
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
23
Required: 1
. BOOT 1
Price unavailable
24
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
25
Required: 1
. BOOT 1
Price unavailable
26
Required: 1
CABLE, THROTTLE 1
Price unavailable
28
Required: 1
WIRE, BRAKE 1
Price unavailable
29
Required: 1
BOOT, CABLE
Price unavailable
Compression Spring
30
Yamaha Motors
Compression Spring90501-10073-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
Special Shape Nut
31
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
33
Required: 2
END, GRIP
Price unavailable
34
Required: 1
CAP GRIP ASSY
Price unavailable
35
Required: 1
. CAP, GRIP UPPER
Price unavailable
36
Required: 1
. CAP, GRIP UNDER
Price unavailable
Pan Head Screw
37
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
38
Required: 1
CABLE, STARTER 1
Price unavailable
39
Required: 2
BAND, SWITCH CORD
Price unavailable
40
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
