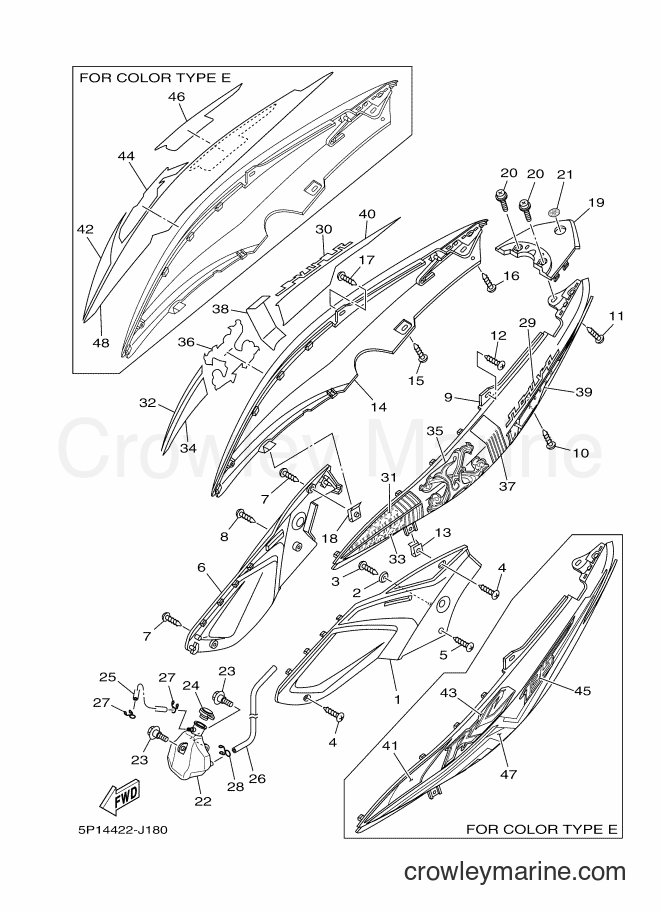

2009 Scooter AT135 - AT135 (5P14) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135 (5P14) [010] - SIDE COVER
Change View:
1
Required: 1
COVER, SIDE 1
Price unavailable
2
Required: 1
WASHER, CONICAL SPRING
Price unavailable
Truss Screw
3
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Truss Screw
4
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Tapping Screw
5
Yamaha Motors
Tapping Screw97780-50014-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
6
Required: 1
COVER, SIDE 2
Price unavailable
Truss Screw
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Tapping Screw
8
Yamaha Motors
Tapping Screw97780-50014-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
9
Required: 1
COVER, SIDE 3
Price unavailable
Truss Screw
10
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Tapping Screw
11
Yamaha Motors
Tapping Screw97780-50014-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
13
Required: 1
NUT, SPRING
Price unavailable
14
Required: 1
COVER, SIDE 4
Price unavailable
Truss Screw
15
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Tapping Screw
16
Yamaha Motors
Tapping Screw97780-50014-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
18
Required: 1
NUT, SPRING
Price unavailable
19
Required: 1
COVER, SIDE 5
Price unavailable
Screw with Washer
20
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
21
Required: 1
EMBLEM
Price unavailable
22
Required: 1
TANK, RECOVERY
Price unavailable
BOLT
23
Yamaha Motors
BOLT90109-06220-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
24
Required: 1
CAP
Price unavailable
25
Required: 1
PIPE 1
Price unavailable
26
Required: 1
PIPE 2
Price unavailable
Scissor Clip
27
Yamaha Motors
Scissor Clip90467-08003-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Clip
28
Yamaha Motors
Clip90467-090A2-00
Required: 1
CLIP
Supersedes: 90467-09006-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
29
Required: 1
EMBLEM 3D
Price unavailable
30
Required: 1
EMBLEM 3D
Price unavailable
31
Required: 1
GRAPHIC 15
Price unavailable
32
Required: 1
GRAPHIC 16
Price unavailable
33
Required: 1
GRAPHIC, 17
Price unavailable
34
Required: 1
GRAPHIC, 18
Price unavailable
35
Required: 1
GRAPHIC, 19
Price unavailable
36
Required: 1
GRAPHIC, 20
Price unavailable
37
Required: 1
GRAPHIC, 21
Price unavailable
38
Required: 1
GRAPHIC, 22
Price unavailable
39
Required: 1
GRAPHIC, 23
Price unavailable
40
Required: 1
GRAPHIC, 24
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
