All diagrams for this model

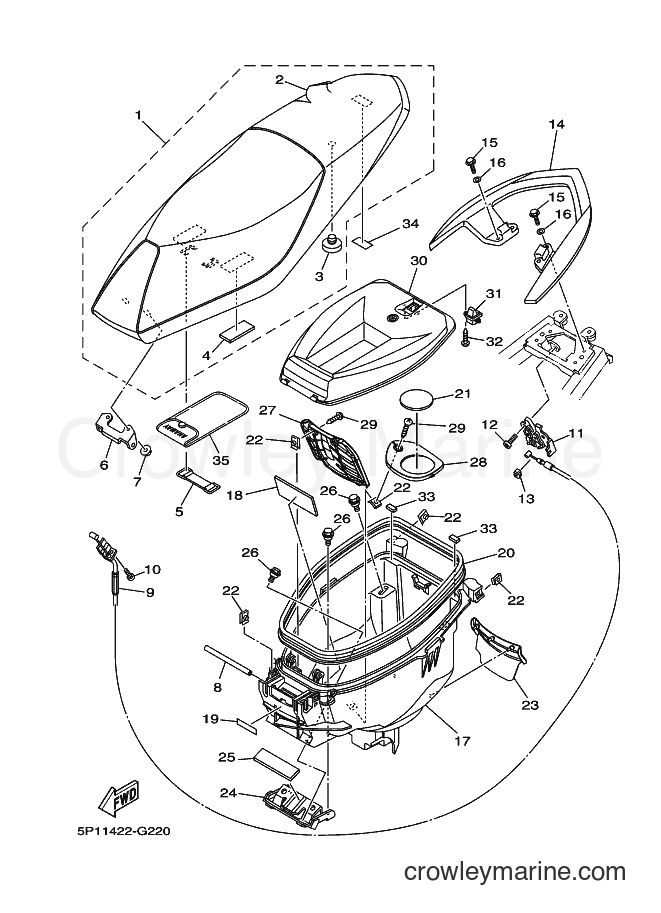

2009 Scooter AT135 - AT135 (5P14) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135 (5P14) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Required: 1
. DAMPER, SEAT
Price unavailable
4
Required: 2
. PROTECTOR,1
Price unavailable
5
Required: 1
BAND, BATTERY
Price unavailable
6
Required: 1
HINGE, SEAT
Price unavailable
Flange Nut
7
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
8
Required: 1
PIN, SEAT FITTING
Price unavailable
9
Required: 1
CABLE, SEAT LOCK
Price unavailable
11
Required: 1
SEAT LOCK ASSY
Price unavailable
Screw
12
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
13
Required: 1
STOPPER
Price unavailable
14
Required: 1
HANDLE, SEAT
Price unavailable
Flange Bolt
15
Yamaha Motors
Flange Bolt95817-06025-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$3.60
You save $-1.85
More details
Plate Washer
16
Yamaha Motors
Plate Washer90201-06045-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
BOX 1
Price unavailable
18
Required: 1
DAMPER
Price unavailable
19
Required: 1
LABEL, WARNING
Price unavailable
20
Required: 1
SEAL
Price unavailable
21
Required: 1
DAMPER, SEAT
Price unavailable
22
Required: 7
NUT, SPRING
Price unavailable
23
Required: 1
FLAP
Price unavailable
24
Required: 1
SUPT. ,BATTERY
Price unavailable
25
Required: 1
DAMPER
Price unavailable
BOLT
26
Yamaha Motors
BOLT90109-06220-00
Required: 6
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
27
Required: 1
COVER, BATTERY
Price unavailable
28
Required: 1
COVER
Price unavailable
Truss Screw
29
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
30
Required: 1
LID 1
Price unavailable
31
Required: 1
LOCK ASSY
Price unavailable
Truss Screw
32
Yamaha Motors
Truss Screw97707-40612-00
Required: 2
SCREW, TAPPING
Supersedes: 97707-40512-00
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
33
Required: 2
DAMPER, SEAT
Price unavailable
34
Required: 1
LABEL, CAUTION
Price unavailable
35
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
