All diagrams for this model

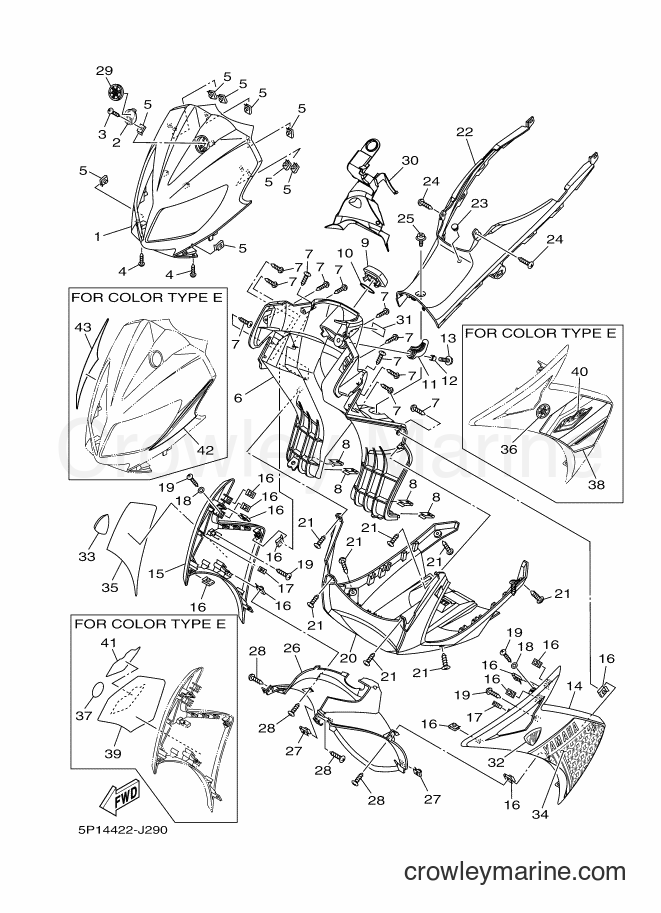

2009 Scooter AT135 - AT135 (5P14) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135 (5P14) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
SPACER
Price unavailable
5
Required: 11
NUT, SPRING
Price unavailable
6
Required: 1
LEG SHIELD ASSY
Price unavailable
8
Required: 4
NUT, SPRING
Price unavailable
9
Required: 1
COVER
Price unavailable
10
Required: 1
BAND
Price unavailable
11
Required: 1
HOOK 1
Price unavailable
12
Required: 1
COLLAR
Price unavailable
13
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
14
Required: 1
PANEL 1
Price unavailable
15
Required: 1
PANEL 2
Price unavailable
16
Required: 12
NUT, SPRING
Price unavailable
17
Required: 2
HOOK
Price unavailable
Plate Washer
18
Yamaha Motors
Plate Washer90201-05033-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Truss Screw
19
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
20
Required: 1
COVER, UNDER
Price unavailable
22
Required: 1
COVER 2
Price unavailable
23
Required: 1
PLUG, BLIND
Price unavailable
Truss Screw
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
25
Required: 1
SCREW, WITH WASHER
Price unavailable
26
Required: 1
FENDER, INNER
Price unavailable
27
Required: 2
NUT, SPRING
Price unavailable
29
Required: 1
EMBLEM 1
Price unavailable
30
Required: 1
FLAP, FRONT FENDER
Price unavailable
31
Required: 1
LABEL, CAUTION
Price unavailable
32
Required: 1
EMBLEM 3D
Price unavailable
33
Required: 1
EMBLEM 3D
Price unavailable
34
Required: 1
GRAPHIC, 15
Price unavailable
35
Required: 1
GRAPHIC 16
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
