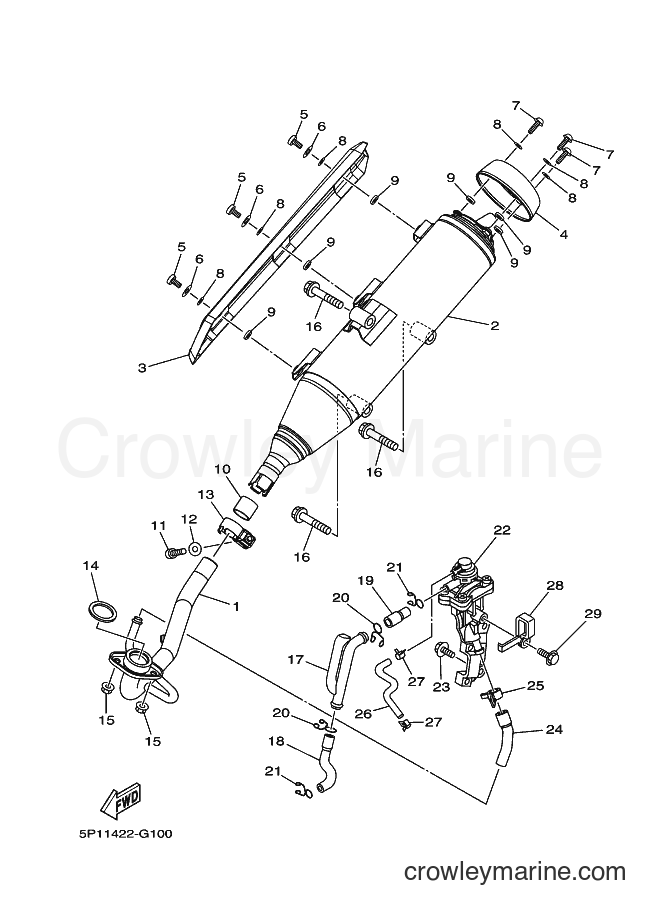

2009 Scooter AT135 - AT135 (5P14) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135 (5P14) [010] - EXHAUST
Change View:
1
Required: 1
PIPE, EXHAUST 1
Price unavailable
2
Required: 1
MUFFLER 1
Price unavailable
3
Required: 1
PROTECTOR, MUFFLER 1
Price unavailable
4
Required: 1
CAP
Price unavailable
Bind Screw
5
Yamaha Motors
Bind Screw98980-06016-00
Required: 3
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
6
Yamaha Motors
Plate Washer90201-06557-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
7
Required: 3
BOLT,HEX. SOCKET BUTTON
Price unavailable
8
Required: 6
WASHER, PLATE
Price unavailable
Plain Washer
9
Yamaha Motors
Plain Washer90201-05016-00
Required: 6
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.85
$4.12
You save $0.73
More details
10
Required: 1
GASKET, MUFFLER
Price unavailable
BOLT
11
Yamaha Motors
BOLT91317-08035-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plain Washer
12
Yamaha Motors
Plain Washer90201-086P8-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
13
Required: 1
BAND, MUFFLER
Price unavailable
14
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
Flange Nut
15
Yamaha Motors
Flange Nut95707-08500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.82
You save $0.13
More details
Flange Bolt
16
Yamaha Motors
Flange Bolt95817-10060-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
17
Required: 1
JOINT
Price unavailable
18
Required: 1
HOSE, BEND 3
Price unavailable
19
Required: 1
HOSE, BEND 4
Price unavailable
Clip
20
Yamaha Motors
Clip90467-16829-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$0.45
$0.42
You save $0.03
More details
21
Required: 2
CLIP
Price unavailable
22
Required: 1
AIR INDUCTION SYSTEM ASSY
Price unavailable
24
Required: 1
HOSE, BEND 2
Price unavailable
25
Required: 1
CLIP
Price unavailable
26
Required: 1
HOSE, VACUUM SENSING 1
Price unavailable
27
Required: 2
CLIP
Price unavailable
28
Required: 1
CLAMP
Price unavailable
Flange Bolt
29
Yamaha Motors
Flange Bolt95027-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
