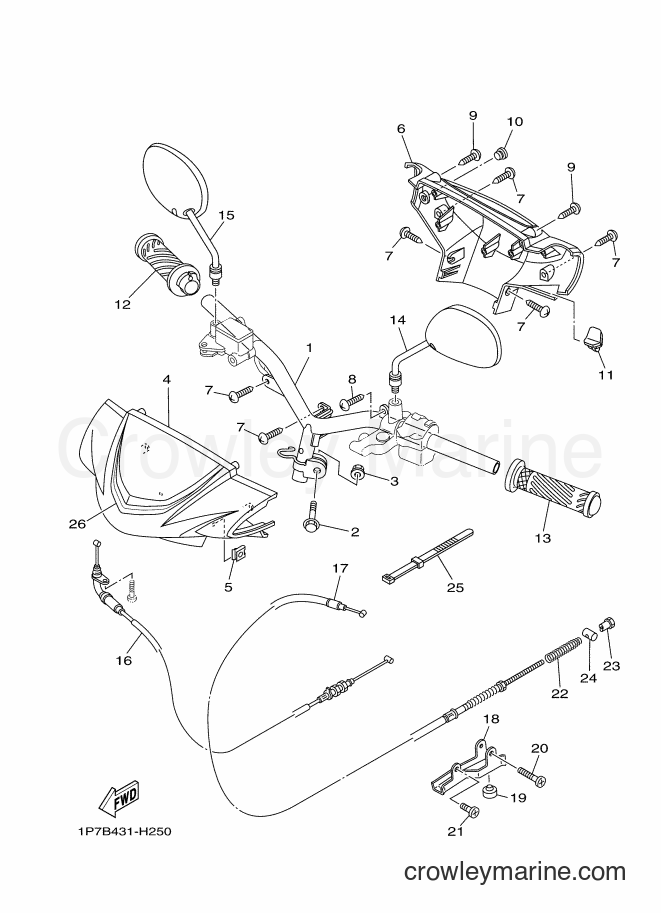

2009 Scooter AT115 - AT115 (1P7B) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AT115 (1P7B) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/wiQkWy1o.png)
1
Required: 1
HANDLE COMP.
Price unavailable
$8.07
You save $1.42
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
COVER, HANDLEBAR UPPER 1 (S3)
Price unavailable
-50%
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
6
Required: 1
COVER, HANDLEBAR UPPER 2 (SMX)
Price unavailable
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
9
Yamaha Motors
Tapping Screw97780-50014-00
Required: 2
SCREW, TAPPING
$2.80
You save $0.50
10
Required: 1
PLUG, BLIND
Price unavailable
11
Required: 1
PLUG, BLIND
Price unavailable
12
Required: 1
GRIP ASSY
Price unavailable
13
Required: 1
GRIP
Price unavailable
14
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
15
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
16
Required: 1
CABLE, THROTTLE 1
Price unavailable
17
Required: 1
CABLE, BRAKE
Price unavailable
18
Required: 1
HOLDER, WIRE
Price unavailable
19
Required: 1
STOPPER
Price unavailable
20
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
$2.74
You save $0.48
21
Yamaha Motors
Pan Head Screw98507-06014-00
Required: 1
SCREW, PAN HEAD
In stock
Only 1 remaining
$7.59
You save $1.90
22
Required: 1
SPRING, COMPRESSION
Price unavailable
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
25
Required: 1
BAND, SWITCH CORD
Price unavailable
26
Required: 1
GRAPHIC 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
