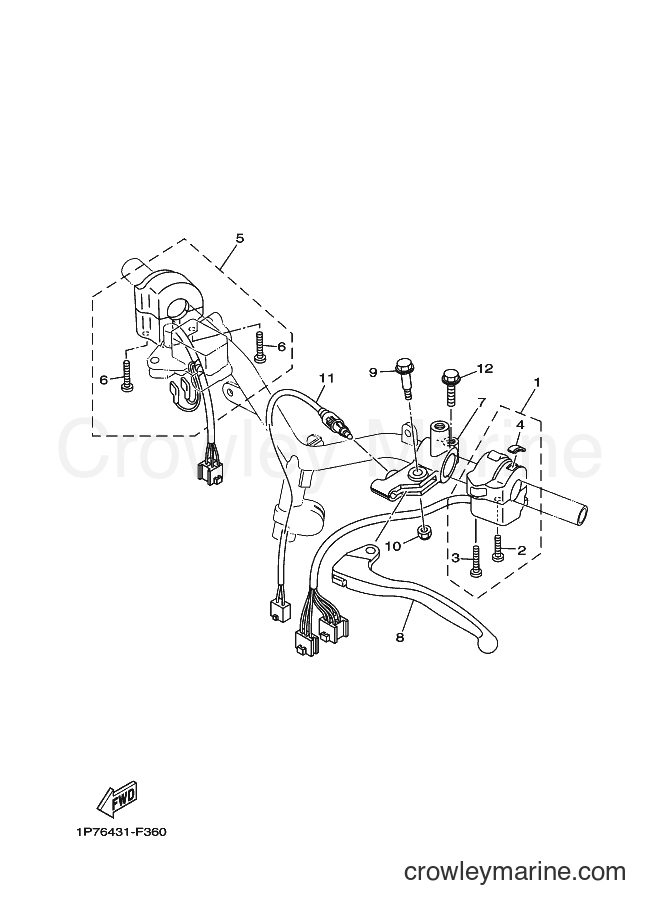

2009 Scooter AT115 - AT115 (1P7B) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115 (1P7B) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Required: 1
. SCREW, PAN HEAD
Price unavailable
3
Required: 1
. SCREW, PAN HEAD
Price unavailable
4
Required: 1
. CAP
Price unavailable
5
Required: 1
SWITCH, HANDLE 1
Price unavailable
6
Required: 2
. SCREW, PAN HEAD
Price unavailable
7
Required: 1
HOLDER, LEVER 1
Price unavailable
8
Required: 1
LEVER 1
Price unavailable
BOLT
9
Yamaha Motors
BOLT90109-06799-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
NUT
10
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
11
Required: 1
SWITCH, CLUTCH ASSY
Price unavailable
