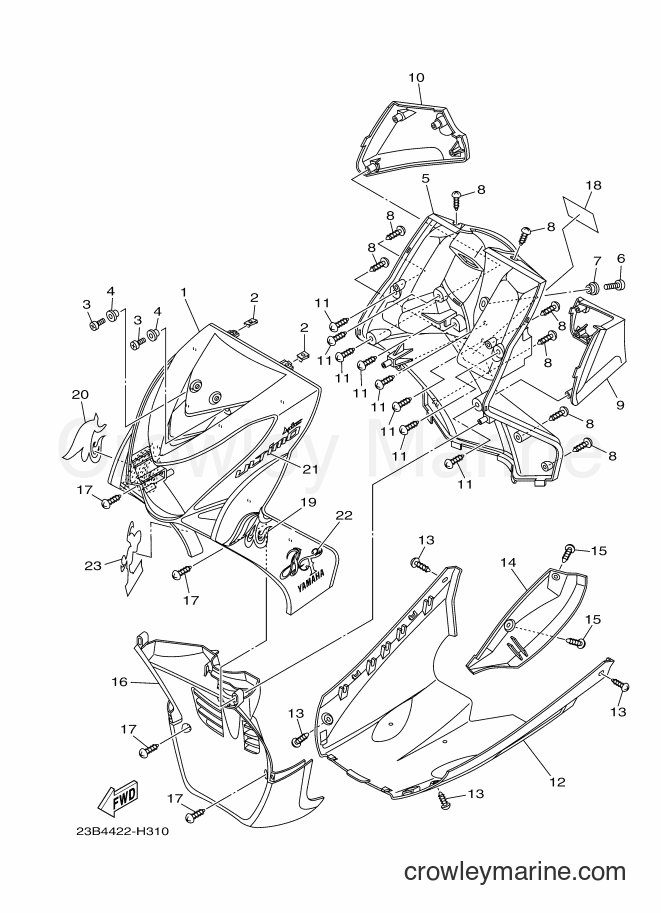

2009 Scooter AL115F - AL115F (23B5) [010] LEG SHIELD diagram
![Yamaha Motors AL115F (23B5) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/z4ROfSQQ.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 2
NUT, SPRING
Price unavailable
3
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
4
Required: 2
COLLAR
Price unavailable
5
Required: 1
LEG SHIELD 2
Price unavailable
6
Required: 1
SCREW, BIND
Price unavailable
7
Required: 1
COLLAR
Price unavailable
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 1
PANEL, INNER 1
Price unavailable
10
Required: 1
PANEL, INNER 2
Price unavailable
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
COVER, LOWER
Price unavailable
13
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
14
Required: 1
COVER, UNDER
Price unavailable
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
16
Required: 1
FENDER, INNER
Price unavailable
17
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
18
Required: 1
LABEL, CAUTION
Price unavailable
19
Required: 1
GRAPHIC, 11
Price unavailable
20
Required: 1
GRAPHIC, 12
Price unavailable
20
Required: 1
GRAPHIC, 12
Price unavailable
21
Required: 1
EMBLEM
Price unavailable
21
Required: 1
EMBLEM
Price unavailable
22
Required: 1
EMBLEM 2
Price unavailable
22
Required: 1
EMBLEM 2
Price unavailable
23
Required: 1
EMBLEM 3
Price unavailable
23
Required: 1
EMBLEM 3
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
