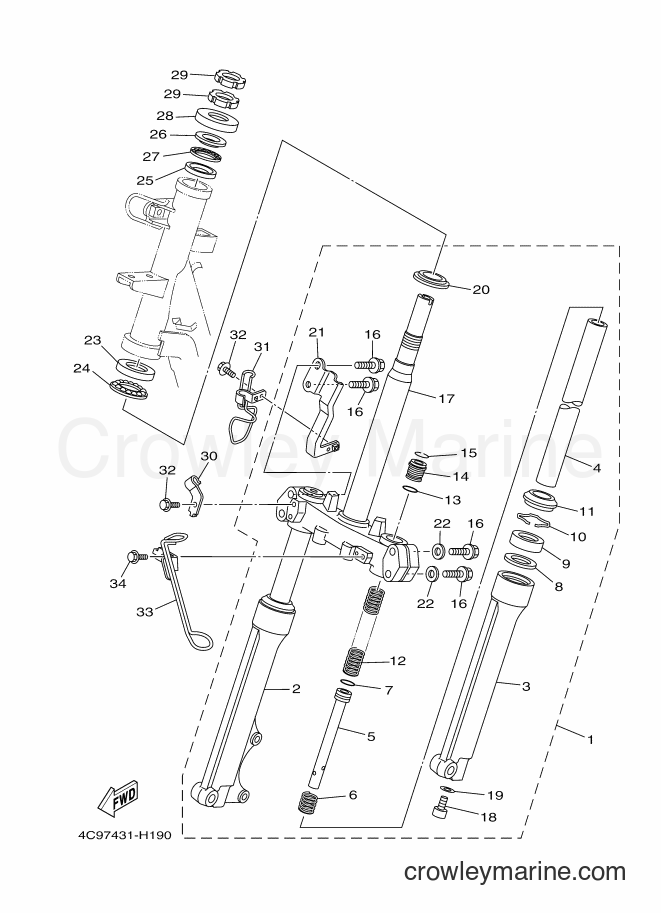

2009 Scooter AL115C - AL115C (4C97) [010] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (4C97) [010] - STEERING
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
2
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
3
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
4
Required: 2
. INNER TUBE COMP.1
Price unavailable
5
Required: 2
. CYLINDER COMP., FRONT FORK
Price unavailable
6
Required: 2
. SPRING, SUB
Price unavailable
7
Required: 2
. RING, PISTON
Price unavailable
8
Required: 2
. WASHER, OIL SEAL
Price unavailable
9
Required: 2
. OIL SEAL
Price unavailable
Oil Seal Clip
10
Yamaha Motors
Oil Seal Clip3M7-23156-00-00
Required: 2
. RING, SNAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
11
Required: 2
. SEAL, DUST
Price unavailable
12
Required: 2
. SPRING, FRONT FORK
Price unavailable
13
Required: 2
. GASKET
Price unavailable
14
Required: 2
. BOLT, CAP
Price unavailable
15
Required: 2
. CIRCLIP
Price unavailable
16
Required: 4
. BOLT 1
Price unavailable
17
Required: 1
. UNDER BRACKET COMP.
Price unavailable
HEX SOCKET HEAD BOLT
18
Yamaha Motors
HEX SOCKET HEAD BOLT4NK-23181-00-00
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Tank Cap Gasket
19
Yamaha Motors
Tank Cap Gasket3MA-23163-10-00
Required: 2
. GASKET, DRAIN PLUG
Supersedes: 3MA-23129-10-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BALL RACE
20
Yamaha Motors
BALL RACEB6E-23411-00-00
Required: 1
. RACE, BALL 1
Supersedes: 156-23411-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
21
Required: 1
. BRACKET 1
Price unavailable
22
Required: 2
. WASHER, FELT
Price unavailable
23
Required: 1
RACE, BALL 2
Price unavailable
24
Required: 1
RETAINER, BALL BEARING
Price unavailable
25
Required: 1
RACE, BALL 2
Price unavailable
26
Required: 1
RACE, BALL 1
Price unavailable
27
Required: 1
RETAINER, BALL BEARING
Price unavailable
28
Required: 1
COVER, BALL RACE 2
Price unavailable
Nut
29
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
30
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
31
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
33
Required: 1
HOLDER, CABLE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
