2009 Scooter AL115S - AL115S (4C9A) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

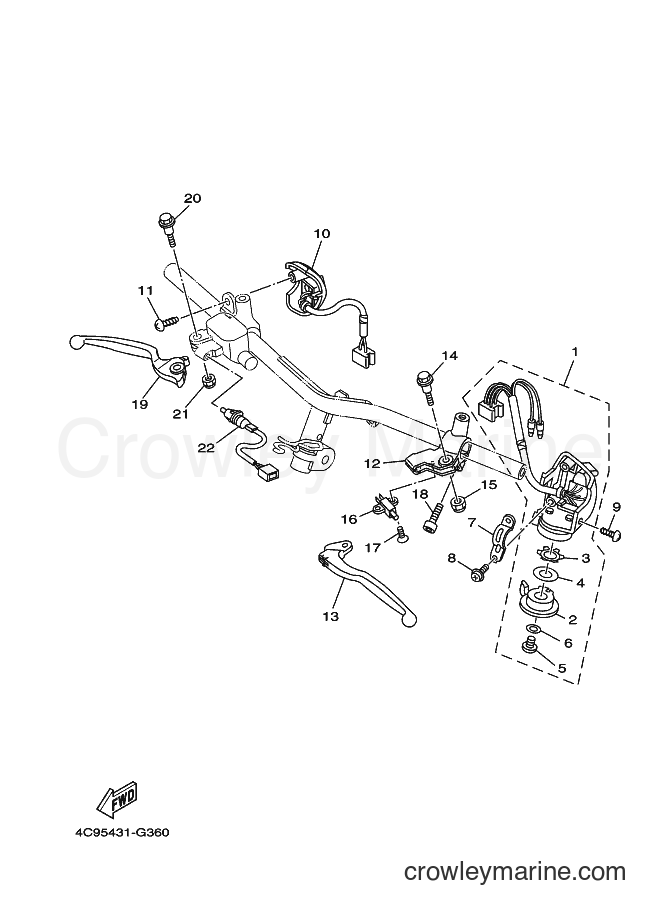

Yamaha Motors AL115S (4C9A) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Required: 1
. LEVER, STARTER
Price unavailable
3
Required: 1
. SPRING
Price unavailable
4
Required: 1
. SPACER
Price unavailable
5
Required: 1
. SCREW, PAN HEAD
Price unavailable
Plain Washer
6
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
. WASHER
Supersedes: 9290L-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
7
Required: 1
BRACKET 1
Price unavailable
8
Required: 2
SCREW,WITH WASHER
Price unavailable
10
Required: 1
SWITCH, HANDLE 1
Price unavailable
12
Required: 1
HOLDER, LEVER 1
Price unavailable
13
Required: 1
LEVER 1
Price unavailable
14
Required: 1
BOLT
Price unavailable
NUT
15
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
16
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
17
Required: 1
SCREW, FLAT HEAD
Price unavailable
Bolt
18
Yamaha Motors
Bolt91317-06020-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
19
Required: 1
LEVER 2
Price unavailable
BOLT
20
Yamaha Motors
BOLT90109-06577-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
NUT
21
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
22
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
