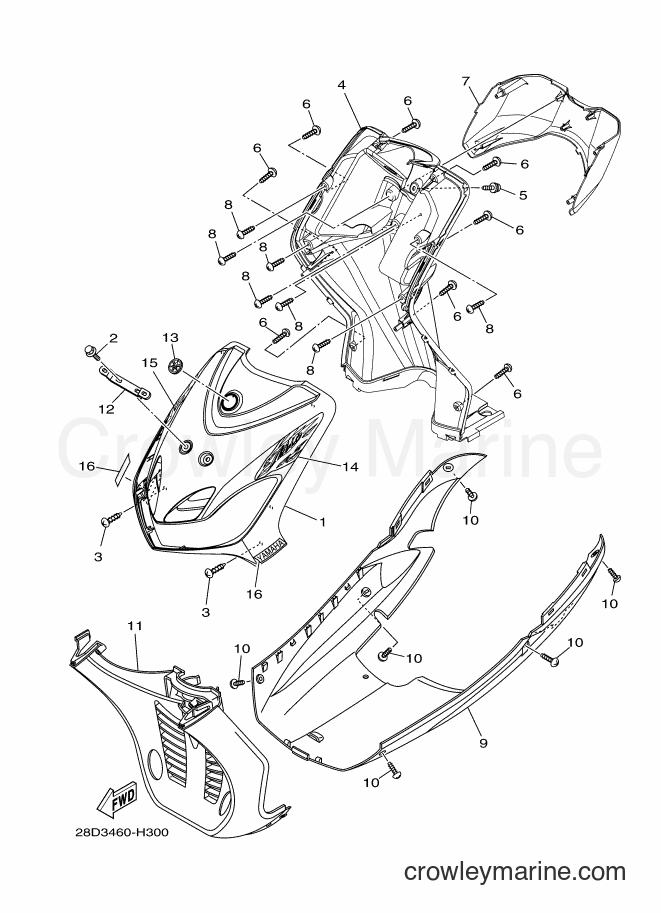

2009 Scooter AL115C - AL115C (28DB) [010] LEG SHIELD diagram
![Yamaha Motors AL115C (28DB) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/M3oYnrbr.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
Flange Bolt95811-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06025-00
$1.44
You save $0.26
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
4
Required: 1
LEG SHIELD 2
Price unavailable
5
Required: 1
SCREW, WITH WASHER
Price unavailable
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
7
Required: 1
PANEL, INNER 1
Price unavailable
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 7
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 1
COVER, UNDER
Price unavailable
10
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
11
Required: 1
FENDER, INNER
Price unavailable
12
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
13
Required: 1
EMBLEM
Price unavailable
14
Required: 1
GRAPHIC, 1
Price unavailable
15
Required: 1
GRAPHIC, 2
Price unavailable
16
Required: 2
EMBLEM, YAMAHA
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
