All diagrams for this model

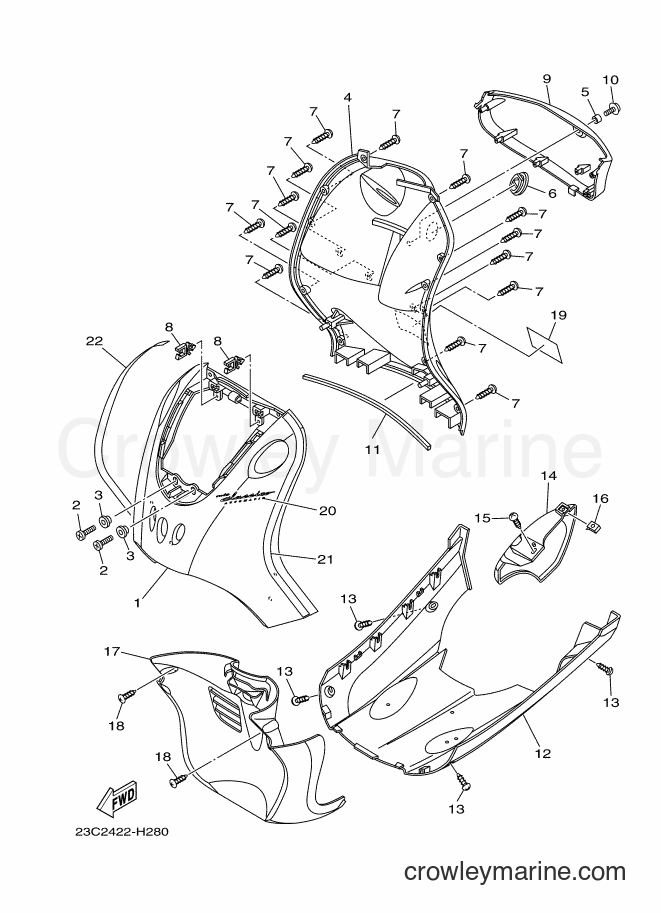

2009 Scooter AF115C - AF115C (23C2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115C (23C2) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Socket Bolt
2
Yamaha Motors
Socket Bolt98907-06016-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 2
COLLAR
Price unavailable
4
Required: 1
LEG SHIELD 2
Price unavailable
5
Required: 1
COLLAR
Price unavailable
6
Required: 1
CAP
Price unavailable
8
Required: 2
CLAMP
Price unavailable
9
Required: 1
PANEL, INNER 1
Price unavailable
Screw with Washer
10
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
DAMPER 1
Price unavailable
12
Required: 1
COVER, LOWER
Price unavailable
14
Required: 1
COVER, UNDER
Price unavailable
16
Required: 1
NUT, SPRING
Price unavailable
17
Required: 1
FENDER, INNER
Price unavailable
19
Required: 1
LABEL, CAUTION
Price unavailable
20
Required: 1
EMBLEM
Price unavailable
21
Required: 1
GRAPHIC 1, L
Price unavailable
22
Required: 1
GRAPHIC 2, R
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
