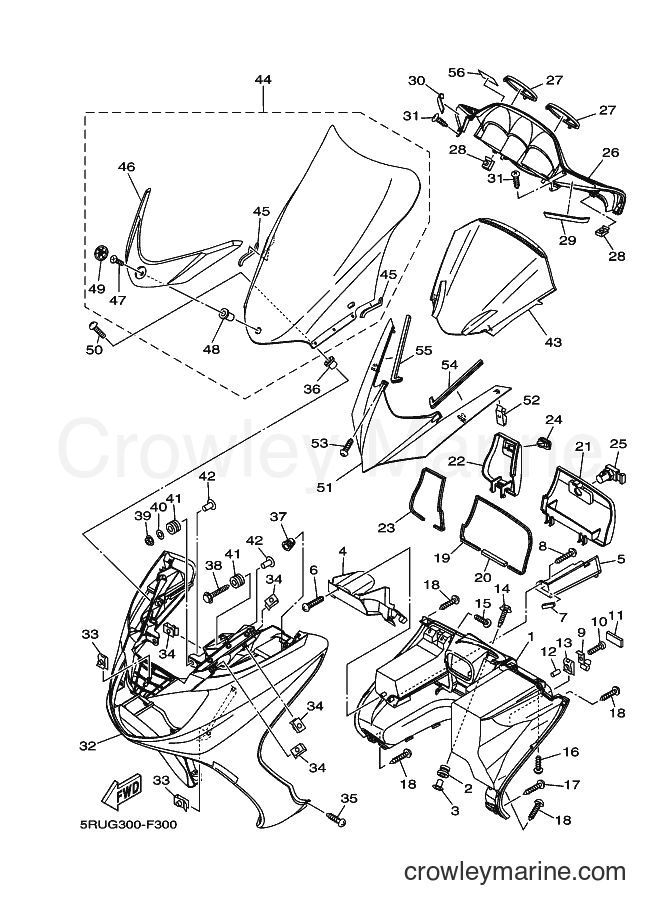

2008 Scooter YP400A - YP400A (34B1) [010] LEG SHIELD diagram

1
Yamaha Motors
Leg Shield Assembly5RU-28300-11-00
Required: 1
LEG SHIELD ASSY
Supersedes: 5RU-28300-10-00
$145.34
You save $25.65
$8.07
You save $1.42
$3.70
You save $0.65

4
Yamaha Motors
Panel5RU-2835U-01-00
Required: 1
PANEL 1
Supersedes: 5RU-2835U-00-00
$13.59
You save $2.40
$28.89
You save $5.10

6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
$2.21
You save $0.39
$2.04
You save $0.36

8
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
$2.21
You save $0.39
$1.66
You save $0.29

10
Yamaha Motors
97702-40612-0097701-40512-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40512-00
$3.57
You save $0.63
$1.66
You save $0.29

12
Yamaha Motors
Hose (L200)90445-05N13-00
Required: 1
HOSE (L10)
Supersedes: 90445-057G5-00
$8.07
You save $1.42
$2.21
You save $0.39

14
Yamaha Motors
Bolt with Washer90119-06232-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06041-00
$2.98
You save $0.52

15
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39

16
Yamaha Motors
Tapping Screw90167-05079-00
Required: 2
SCREW, TAPPING
$3.82
You save $0.68

17
Yamaha Motors
Tapping Screw97702-50016-00
Required: 6
SCREW, TAPPING
$2.21
You save $0.39

18
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
$2.21
You save $0.39
$5.52
You save $0.97
$3.10
You save $0.55

21
Yamaha Motors
Lid5RU-2839K-00-00
Required: 1
GRAPHIC, 12
$52.69
You save $9.30
$127.49
You save $22.50
$4.12
You save $0.73
$27.19
You save $4.80

25
Yamaha Motors
Lock Assembly4BH-21708-11-00
Required: 1
LOCK ASSY
Supersedes: 4BH-21780-11-00
$82.44
You save $14.55

26
Yamaha Motors
Inner Panel5RU-2836K-00-00
Required: 1
PANEL, INNER 1
$109.64
You save $19.35

27
Yamaha Motors
Access Panel5RU-2839R-00-00
Required: 2
PANEL, ACCESSORY
$16.99
You save $3.00
In stock
Only 1 remaining
$0.85
You save $0.15
$2.72
You save $0.48
$2.72
You save $0.48

31
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
$302.59
You save $53.40
In stock
Only 2 remaining
$6.37
You save $1.12
In stock
Only 1 remaining
$0.85
You save $0.15

35
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
$6.37
You save $1.12
$2.34
You save $0.41

38
Yamaha Motors
Bolt with Washer90119-06162-00
Required: 2
BOLT, WITH WASHER
$0.89
You save $0.16

39
Yamaha Motors
Flange Nut95780-06500-00
Required: 2
NUT, FLANGE
Supersedes: 95704-06500-00
In stock
Only 2 remaining
$2.51
You save $0.44

40
Yamaha Motors
Plain Washer90201-06088-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
$7.22
You save $1.27
$8.07
You save $1.42

43
Yamaha Motors
Inner Panel5RU-2836L-00-00
Required: 1
PANEL, INNER 2
$130.04
You save $22.95
44
Required: 1
WINDSHIELD
Price unavailable
$8.92
You save $1.57
46
Required: 1
. MOLE 5
Price unavailable

47
Yamaha Motors
Countersunk Screw90151-05055-00
Required: 1
. SCREW, FLAT HEAD
Supersedes: 98702-05016-00
$8.07
You save $1.42
$6.37
You save $1.12

49
Yamaha Motors
TUNING FORK EMBLEM-F5GM-2836B-01-00
Required: 1
. TUNING FORK MARK
$32.29
You save $5.70

50
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 6
SCREW, ROUND HEAD
$2.85
You save $0.50
$130.89
You save $23.10
$7.22
You save $1.27
53
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
$2.29
You save $0.41
$10.19
You save $1.80
$9.77
You save $1.72
56
Required: 1
LABEL, WARNING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
