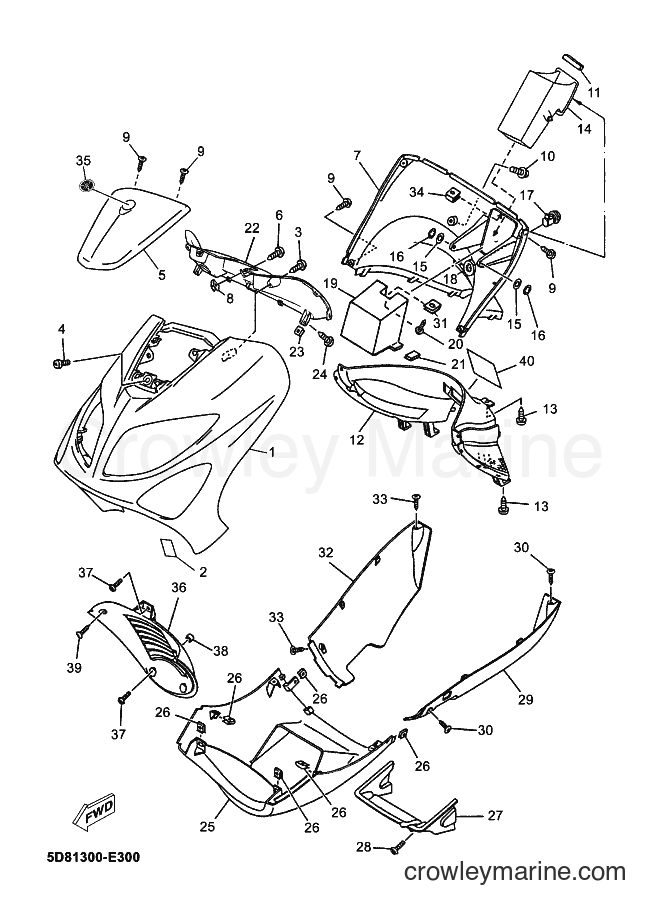

2008 Scooter YP125E - YP125E (5D83) [040] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125E (5D83) [040] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
LABEL
Price unavailable
3
Required: 2
SCREW, TAPPING
Price unavailable
4
Required: 2
BOLT
Price unavailable
5
Required: 1
PANEL 1
Price unavailable
6
Required: 2
SCREW, TAPPING
Price unavailable
7
Required: 1
BODY, COWLING
Price unavailable
8
Required: 1
NUT, SPRING
Price unavailable
9
Required: 5
SCREW, TAPPING
Price unavailable
10
Required: 1
SCREW, WITH WASHER
Price unavailable
11
Required: 1
DAMPER
Price unavailable
12
Required: 1
LEG SHIELD 2
Price unavailable
13
Required: 5
SCREW, TAPPING
Price unavailable
14
Required: 1
LID 2
Price unavailable
15
Required: 2
WASHER
Price unavailable
16
Required: 2
NUT, SPRING
Price unavailable
17
Required: 1
LOCK ASSY
Price unavailable
18
Required: 1
NUT
Price unavailable
19
Required: 1
LID 1
Price unavailable
20
Required: 1
SCREW, TAPPING
Price unavailable
21
Required: 2
CLAMP
Price unavailable
22
Required: 1
PANEL, CONSOLE 1
Price unavailable
23
Required: 4
NUT, SPRING
Price unavailable
24
Required: 2
SCREW, TAPPING
Price unavailable
25
Required: 1
COVER, UNDER
Price unavailable
26
Required: 8
NUT, SPRING
Price unavailable
27
Required: 1
GUARD, STONE
Price unavailable
Socket Bolt
28
Yamaha Motors
Socket Bolt98907-06016-00
Required: 2
SCREW, BIND
Supersedes: 9890M-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
29
Required: 1
MOLE, SIDE COVER 1
Price unavailable
30
Required: 2
SCREW, TAPPING
Price unavailable
31
Required: 1
NUT, SPRING
Price unavailable
32
Required: 1
MOLE, SIDE COVER 2
Price unavailable
33
Required: 2
SCREW, TAPPING
Price unavailable
34
Required: 1
NUT, SPRING
Price unavailable
35
Required: 1
EMBLEM
Price unavailable
36
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
Socket Bolt
37
Yamaha Motors
Socket Bolt98907-06016-00
Required: 3
SCREW, BIND
Supersedes: 9890M-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COLLAR
38
Yamaha Motors
COLLAR90387-067V1-00
Required: 2
COLLAR
Supersedes: 90387-06X06-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
39
Required: 2
SCREW, TAPPING
Price unavailable
40
Required: 1
LABEL, CAUTION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
