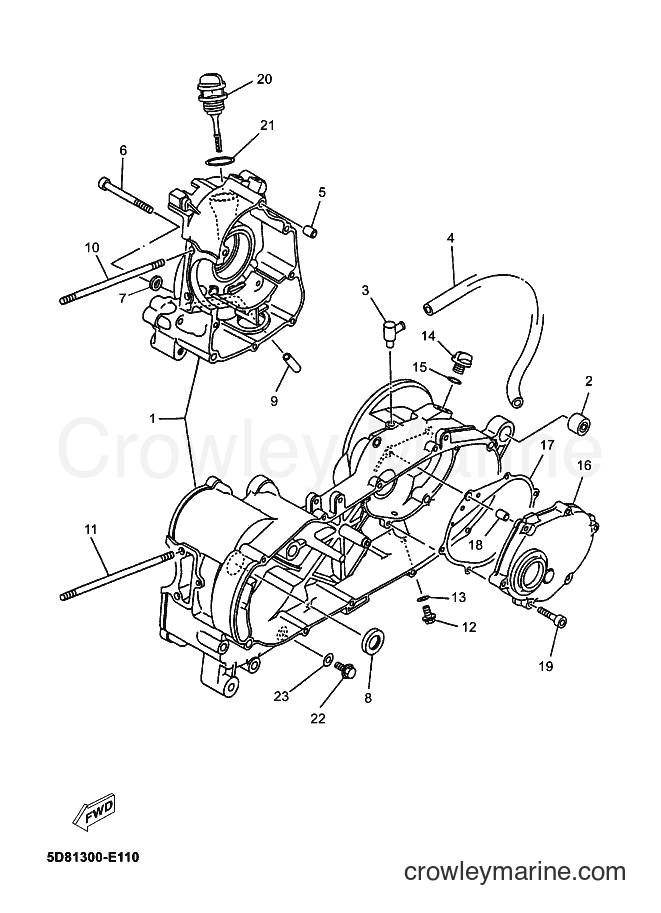

2008 Scooter YP125E - YP125E (5D83) [040] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125E (5D83) [040] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
Rear Shock Absorber Bushing
2
Yamaha Motors
Rear Shock Absorber Bushing164-22216-00-00
Required: 1
BUSH, REAR SHOCK ABSORBER
Supersedes: 4X6-F2216-00-00
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
3
Required: 1
BREATHER
Price unavailable
4
Required: 1
PIPE, BREATHER
Price unavailable
5
Required: 2
PIN, DOWEL
Price unavailable
6
Required: 8
BOLT
Price unavailable
7
Required: 2
WASHER, PLATE
Price unavailable
SD-TYPE OIL SEAL
8
Yamaha Motors
SD-TYPE OIL SEAL93102-22294-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Oil Pipe 1
9
Yamaha Motors
Oil Pipe 13UH-E3416-00-00
Required: 1
PIPE, OIL 1
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
10
Required: 2
BOLT, STUD
Price unavailable
11
Required: 2
BOLT, STUD
Price unavailable
12
Required: 1
BOLT, FLANGE
Price unavailable
Tank Cap Gasket
13
Yamaha Motors
Tank Cap Gasket90430-08816-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
Oil Plug
14
Yamaha Motors
Oil Plug3VL-E5363-00-00
Required: 1
PLUG, OIL
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
15
Required: 1
O-RING
Price unavailable
16
Required: 1
COVER, CRANKCASE 2
Price unavailable
17
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
18
Required: 2
PIN, DOWEL
Price unavailable
19
Required: 6
BOLT, HEXAGON SOCKET HEAD
Price unavailable
20
Required: 1
PLUG, OIL
Price unavailable
22
Required: 1
BOLT, FLANGE
Price unavailable
Tank Cap Gasket
23
Yamaha Motors
Tank Cap Gasket90430-08816-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
