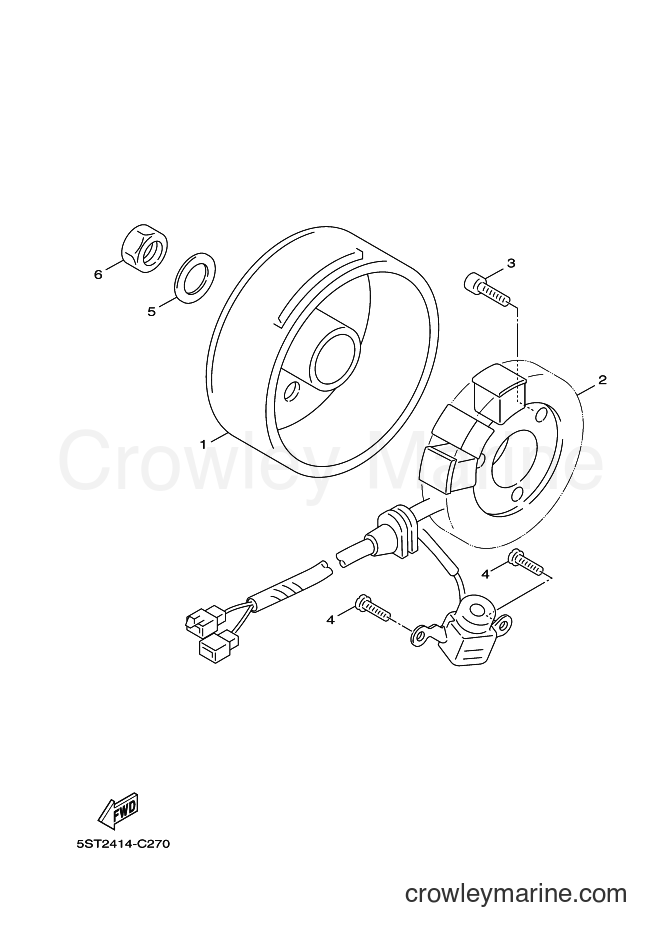

2008 Scooter XC50 - XC50 (3D16) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC50 (3D16) [010] - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly5ST-H1450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
STATOR ASSY
2
Yamaha Motors
STATOR ASSY1P4-H1410-01-00
Required: 1
STATOR ASSY
Supersedes: 1P4-H1410-00-00
Cross Ship
Leaves in 2-5 days
$36.99
$31.44
You save $5.55
More details
BOLT
3
Yamaha Motors
BOLT91317-05020-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Plate Washer
5
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
NUT (6TA)
6
Yamaha Motors
NUT (6TA)95337-12600-00
Required: 1
NUT
Supersedes: 95307-12600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
