2008 Scooter XC125E - XC125E (4P73) [020] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

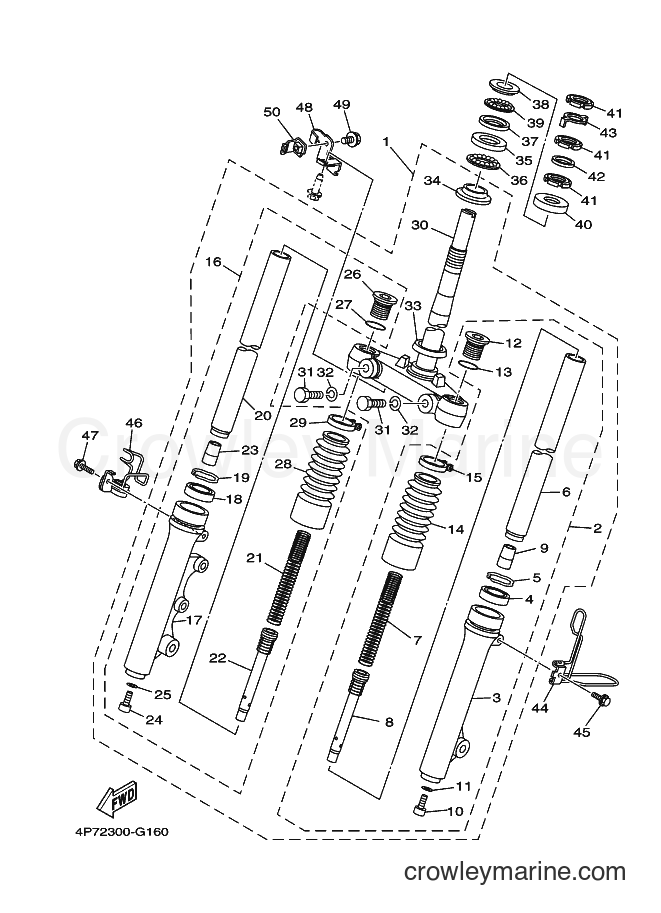

Yamaha Motors XC125E (4P73) [020] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. FRONT FORK ASSY (L.H)
Price unavailable
3
Required: 1
. . TUBE, OUTER (L.H)
Price unavailable
Oil Seal
4
Yamaha Motors
Oil Seal4GU-F3145-00-00
Required: 1
. . OIL SEAL
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
Snap Ring
5
Yamaha Motors
Snap Ring5AP-F3153-00-00
Required: 1
. . RING, SNAP
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
6
Required: 1
. . INNER TUBE COMP.1
Price unavailable
7
Required: 1
. . SPRING, FRONT FORK
Price unavailable
8
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
9
Required: 1
. . SPACER, OIL LOCK
Price unavailable
10
Required: 1
. . BOLT 2
Price unavailable
11
Required: 1
. . GASKET
Price unavailable
12
Required: 1
. . BOLT, CAP
Price unavailable
13
Required: 1
. . O-RING
Price unavailable
14
Required: 1
. . BOOT
Price unavailable
15
Required: 1
. . BAND
Price unavailable
16
Required: 1
. FRONT FORK ASSY (R.H)
Price unavailable
17
Required: 1
. . TUBE, OUTER 2
Price unavailable
Oil Seal
18
Yamaha Motors
Oil Seal4GU-F3145-00-00
Required: 1
. . OIL SEAL
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
Snap Ring
19
Yamaha Motors
Snap Ring5AP-F3153-00-00
Required: 1
. . RING, SNAP
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
20
Required: 1
. . INNER TUBE COMP.1
Price unavailable
21
Required: 1
. . SPRING, FRONT FORK
Price unavailable
22
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
23
Required: 1
. . SPACER, OIL LOCK
Price unavailable
24
Required: 1
. . BOLT 2
Price unavailable
25
Required: 1
. . GASKET
Price unavailable
26
Required: 1
. . BOLT, CAP
Price unavailable
27
Required: 1
. . O-RING
Price unavailable
28
Required: 1
. . BOOT
Price unavailable
29
Required: 1
. . BAND
Price unavailable
30
Required: 1
. UNDER BRACKET COMP.
Price unavailable
31
Required: 2
. BOLT 1
Price unavailable
32
Required: 2
. WASHER, PLAIN
Price unavailable
33
Required: 1
. SEAL, DUST
Price unavailable
34
Required: 1
. RACE, BALL 1
Price unavailable
35
Required: 1
RACE, BALL 2
Price unavailable
36
Required: 1
RETAINER, BALL BEARING
Price unavailable
37
Required: 1
RACE, BALL 2
Price unavailable
38
Required: 1
RACE, BALL 1
Price unavailable
39
Required: 1
RETAINER, BALL BEARING
Price unavailable
40
Required: 1
COVER, BALL RACE 2
Price unavailable
SPECIAL SHAPE NUT
41
Yamaha Motors
SPECIAL SHAPE NUT90179-25615-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Plate Washer
42
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
43
Required: 1
WASHER, SPECIAL
Price unavailable
44
Required: 1
HOLDER, CABLE
Price unavailable
46
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
48
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
50
Required: 1
HOLDER, BRAKE HOSE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
