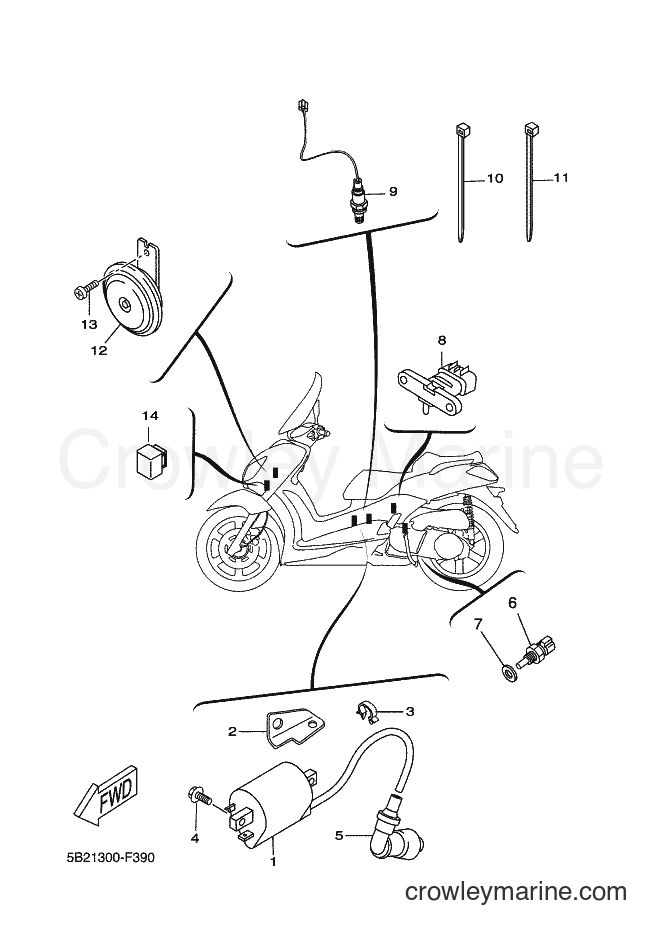

2008 Scooter VP250 - VP250 (5B22) [040] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B22) [040] - ELECTRICAL 2
Change View:
Ignition Coil Assembly
1
Yamaha Motors
Ignition Coil Assembly3D8-82310-11-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3D8-82310-10-00
Cross Ship
Leaves in 2-5 days
$58.99
$50.14
You save $8.85
More details
2
Required: 1
HOLDER, HIGH TENSION CORD
Price unavailable
3
Required: 1
CLAMP
Price unavailable
4
Required: 2
BOLT, FLANGE
Price unavailable
5
Required: 1
PLUG CAP ASSY
Price unavailable
Thermosensor Assembly
6
Yamaha Motors
Thermosensor Assembly5YP-85790-00-00
Required: 1
THERMOSENSOR ASSY
Cross Ship
Leaves in 2-5 days
$70.99
$60.34
You save $10.65
More details
7
Required: 1
GASKET
Price unavailable
Pressure Sensor
8
Yamaha Motors
Pressure Sensor1C7-82380-00-00
Required: 1
SENSOR, PRESSURE
Cross Ship
Leaves in 2-5 days
$199.99
$169.99
You save $30.00
More details
Sensor Assembly
9
Yamaha Motors
Sensor Assembly5C4-8592A-00-00
Required: 1
O2 SENSOR
Cross Ship
Leaves in 2-5 days
$346.99
$294.94
You save $52.05
More details
Switch Cord Band
10
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 13
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Switch Cord Band
11
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 3
BAND, SWITCH CORD
Supersedes: 4VU-H3936-01-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
12
Required: 1
HORN
Price unavailable
Flange Bolt
13
Yamaha Motors
Flange Bolt95817-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-06X00-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
14
Required: 1
FLASHER RELAY ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
