2008 Scooter T135S - T135S (5YP8) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

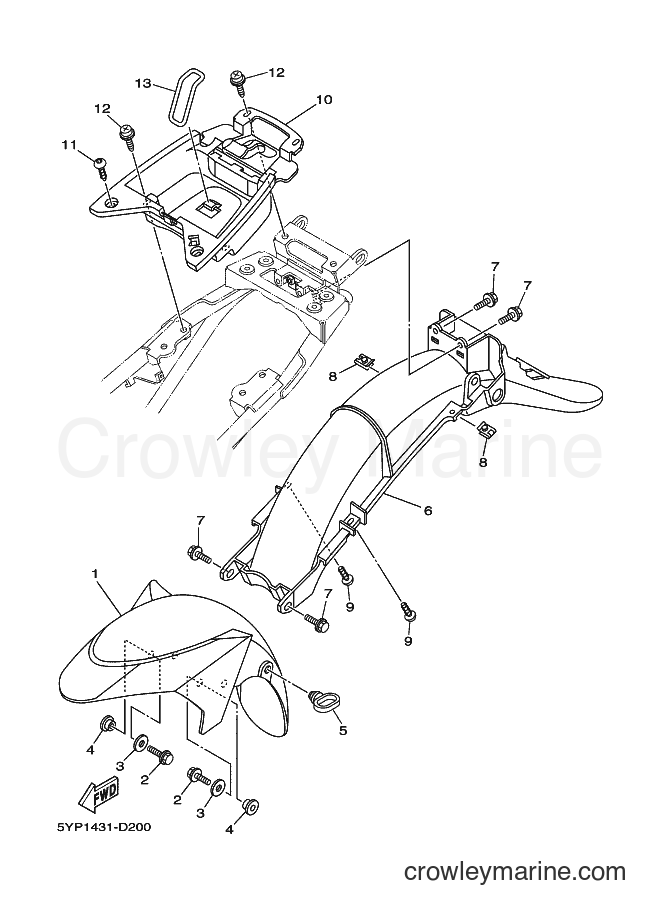

Yamaha Motors T135S (5YP8) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt95827-06016-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-06072-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
4
Required: 4
COLLAR
Price unavailable
5
Required: 1
HOLDER, CABLE
Price unavailable
6
Required: 1
FENDER, REAR
Price unavailable
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
9
Required: 2
SCREW, ROUND TAPPING
Price unavailable
10
Required: 1
BOX
Price unavailable
11
Required: 2
SCREW, ROUND TAPPING
Price unavailable
Screw with Washer
12
Yamaha Motors
Screw with Washer90159-06067-00
Required: 4
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
BATTERY BAND
13
Yamaha Motors
BATTERY BAND5VV-H2131-00-00
Required: 1
BAND, BATTERY
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
