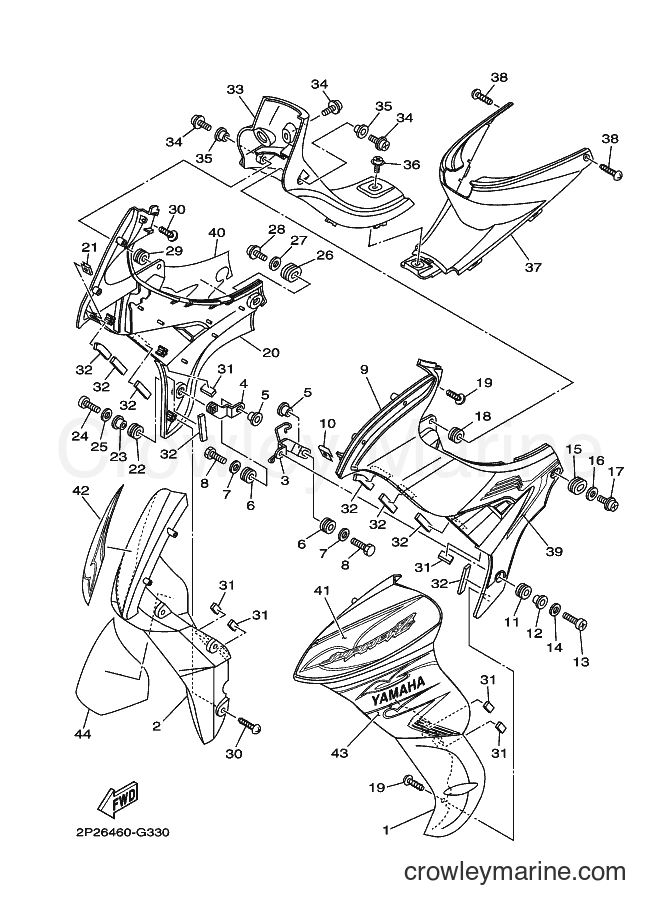

2008 Scooter T110SEC - T110SEC (30C2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SEC (30C2) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
LEG SHIELD 2
Price unavailable
3
Required: 1
STAY, LEG SHIELD
Price unavailable
4
Required: 1
STAY 2
Price unavailable
5
Required: 2
COLLAR
Price unavailable
Grommet
6
Yamaha Motors
Grommet90480-13018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
7
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Hexagon Bolt
8
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97007-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
9
Required: 1
COVER, LOWER
Price unavailable
Grommet (3AK)
11
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
12
Required: 1
COLLAR
Price unavailable
Binding Screw
13
Yamaha Motors
Binding Screw98907-06020-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
14
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
15
Required: 1
GROMMET
Price unavailable
16
Required: 1
WASHER, PLATE
Price unavailable
17
Required: 1
SCREW, WITH WASHER
Price unavailable
18
Required: 1
GROMMET
Price unavailable
Truss Screw
19
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
20
Required: 1
COVER, UNDER
Price unavailable
Grommet (3AK)
22
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
23
Required: 1
COLLAR
Price unavailable
Binding Screw
24
Yamaha Motors
Binding Screw98907-06020-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
25
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
26
Required: 1
GROMMET
Price unavailable
27
Required: 1
WASHER, PLATE
Price unavailable
28
Required: 1
SCREW, WITH WASHER
Price unavailable
29
Required: 1
GROMMET
Price unavailable
Truss Screw
30
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
31
Required: 6
DAMPER
Price unavailable
32
Required: 8
DAMPER
Price unavailable
33
Required: 1
COVER 1
Price unavailable
34
Required: 3
SCREW, WITH WASHER
Price unavailable
35
Required: 2
COLLAR
Price unavailable
Screw with Washer
36
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
37
Required: 1
COVER 2
Price unavailable
Truss Screw
38
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
39
Required: 1
GRAPHIC 1
Price unavailable
40
Required: 1
GRAPHIC 2
Price unavailable
41
Required: 1
EMBLEM
Price unavailable
42
Required: 1
GRAPHIC 14
Price unavailable
43
Required: 1
GRAPHIC15
Price unavailable
44
Required: 1
GRAPHIC 16
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
