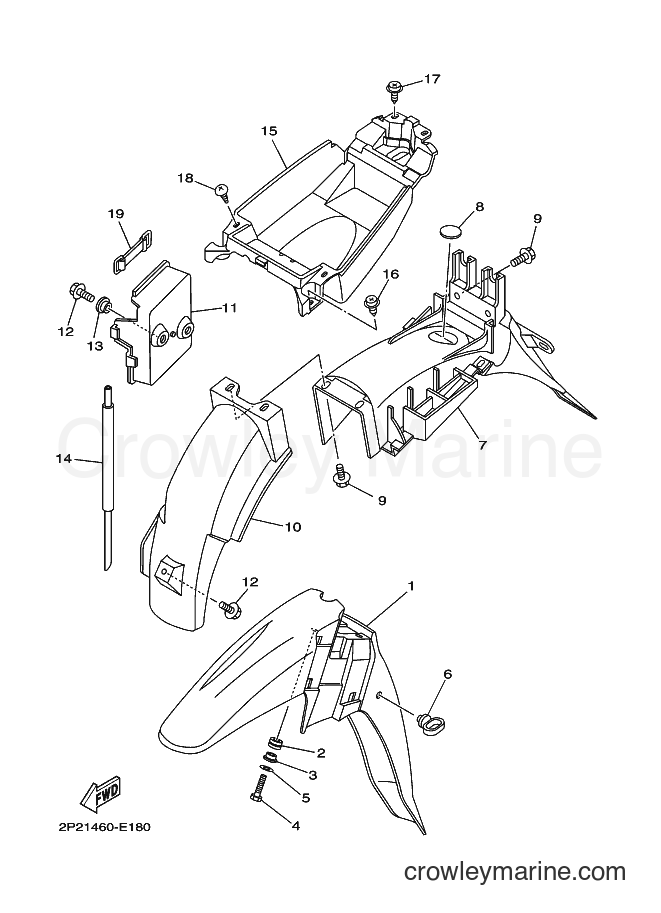

2008 Scooter T110SEC - T110SEC (30C2) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SEC (30C2) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
3
Required: 3
COLLAR
Price unavailable
Hexagon Bolt
4
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 3
BOLT, HEXAGON
Supersedes: 97027-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
6
Required: 1
HOLDER, CABLE
Price unavailable
7
Required: 1
FENDER, REAR
Price unavailable
8
Required: 1
COVER 2
Price unavailable
Bolt with Washer
9
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
10
Required: 1
GUARD, FLAP
Price unavailable
11
Required: 1
BOX, BATTERY
Price unavailable
Bolt with Washer
12
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
13
Required: 2
COLLAR
Price unavailable
14
Required: 1
HOSE (L350)
Price unavailable
15
Required: 1
BOX
Price unavailable
16
Required: 2
SCREW, WITH WASHER
Price unavailable
Screw with Washer
17
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Truss Screw
18
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
19
Required: 1
BAND, BATTERY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
