2008 Scooter T110SE - T110SE (5B95) [010] METER 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

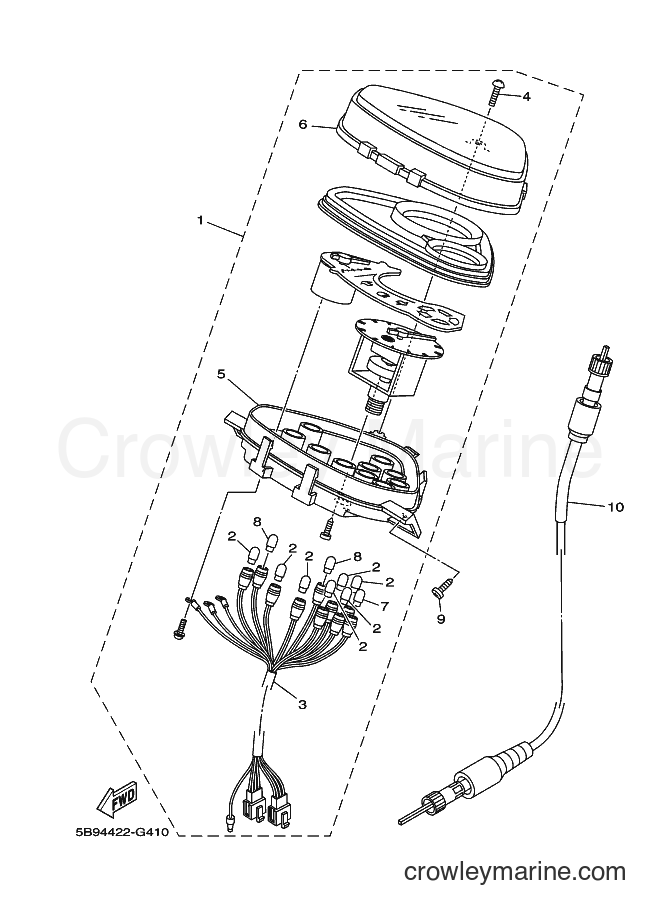

Yamaha Motors T110SE (5B95) [010] - METER 2

Change View:

Required: 1

SPEEDOMETER ASSY

Price unavailable

Yamaha Motors

Obsolete Yamaha Part3FV-83517-00-00

Required: 7

. BULB (12V-1.7W T6.5)

Supersedes: 2GV-83517-00-00

~~$9.49~~

$8.07

You save $1.42

More details

Required: 1

. SOCKET CORD ASSY

Price unavailable

Yamaha Motors

Tapping Screw97707-30014-00

Required: 1

. SCREW, TAPPING

~~$0.85~~

$0.72

You save $0.13

More details

Required: 1

. CASE, METER LOWER

Price unavailable

Required: 1

. LENS, SPEEDOMETER

Price unavailable

Yamaha Motors

Obsolete Yamaha Part3FV-83517-00-00

Required: 1

. BULB (12V-1.7W)

~~$9.49~~

$8.07

You save $1.42

More details

Required: 2

. BULB, LED

Price unavailable

Yamaha Motors

Truss Head Tapping Screw97707-50016-00

Required: 2

SCREW, TRUSS HEAD TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

More details

Required: 1

SPEEDOMETER CABLE ASSY

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
