All diagrams for this model

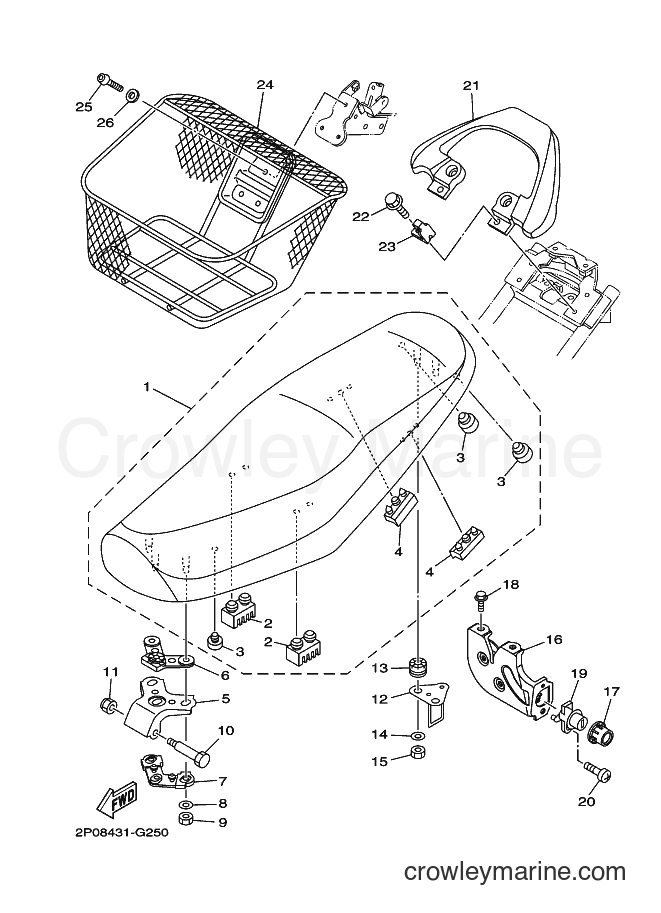

2008 Scooter T110SE - T110SE (2P09) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SE (2P09) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 2
. DAMPER, SEAT
Price unavailable
3
Required: 3
. PAD, SEAT
Price unavailable
4
Required: 2
. DAMPER, SEAT
Price unavailable
5
Required: 1
HINGE, SEAT
Price unavailable
6
Required: 1
DAMPER, SEAT
Price unavailable
7
Required: 1
PAD, SEAT 2
Price unavailable
8
Required: 3
WASHER, PLATE
Price unavailable
Nut
9
Yamaha Motors
Nut95317-06600-00
Required: 3
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
10
Required: 1
BOLT
Price unavailable
NUT
11
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$3.60
You save $-0.70
More details
12
Required: 1
BRACKET, SEAT
Price unavailable
13
Required: 2
GROMMET
Price unavailable
Plain Washer
14
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Nut
15
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
16
Required: 1
SEAT LOCK ASSY
Price unavailable
17
Required: 1
COVER
Price unavailable
19
Required: 1
ROTOR ASSY
Price unavailable
Pan Head Screw
20
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details
21
Required: 1
HANDLE, SEAT
Price unavailable
23
Required: 2
HANGER, HELMET
Price unavailable
24
Required: 1
BASKET, FRONT
Price unavailable
Button head bolt
25
Yamaha Motors
Button head bolt92017-06040-00
Required: 3
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
Plate Washer
26
Yamaha Motors
Plate Washer90201-064J1-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
