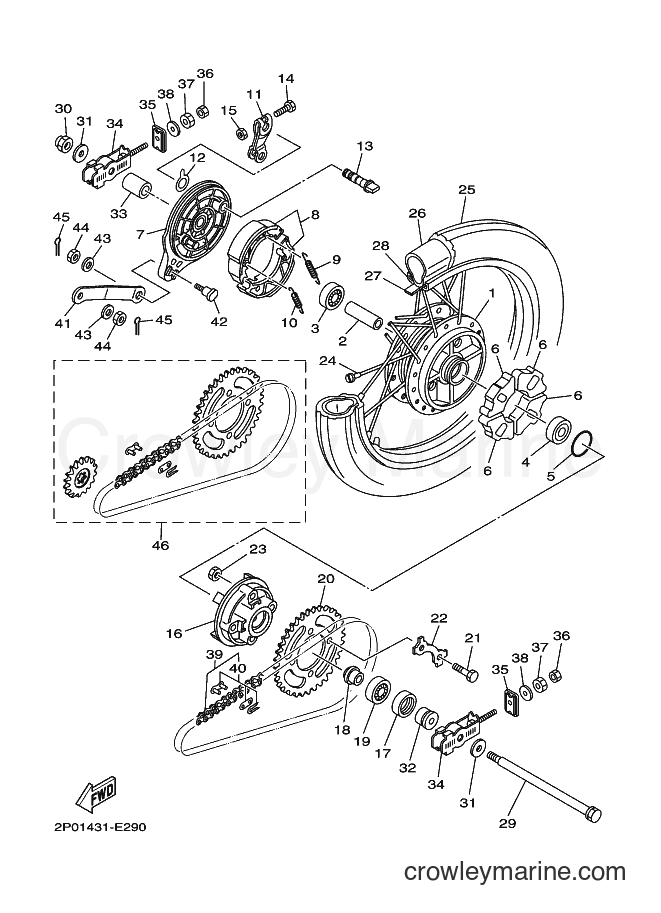

2008 Scooter T110S - T110S (2P08) [010] REAR WHEEL diagram
![Yamaha Motors T110S (2P08) [010] - REAR WHEEL](https://cdn.crowleymarine.com/yamaha/cM5qwBhS.png)
1
Required: 1
HUB, REAR
Price unavailable
$18.39
You save $4.60
3
Required: 1
BEARING
Price unavailable
4
Required: 1
BEARING
Price unavailable
$7.22
You save $1.27
6
Required: 4
DAMPER
Price unavailable
7
Required: 1
PLATE, BRAKE SHOE
Price unavailable
8
Required: 1
BRAKE SHOE SET
Price unavailable
9
Yamaha Motors
Tension Spring90506-12001-00
Required: 1
SPRING, TENSION
$8.92
You save $1.57
10
Yamaha Motors
Tension Spring90506-15001-00
Required: 1
SPRING, TENSION
$5.52
You save $0.97
11
Required: 1
LEVER, CAMSHAFT
Price unavailable
12
Required: 1
PLATE, INDICATOR
Price unavailable
13
Required: 1
CAMSHAFT
Price unavailable
$2.21
You save $0.39
15
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
$3.27
You save $0.58
16
Required: 1
CLUTCH, HUB
Price unavailable
17
Required: 1
OIL SEAL
Price unavailable
18
Required: 1
COLLAR
Price unavailable
19
Required: 1
BEARING
Price unavailable
20
Required: 1
SPROCKET, DRIVEN (36T)
Price unavailable
21
Required: 4
BOLT
Price unavailable
22
Required: 2
WASHER
Price unavailable
-50%
In stock
Only 4 remaining
$5.25
You save $5.25
24
Required: 1
SPOKE SET, REAR
Price unavailable
25
Required: 1
TIRE (80/90-17 M/C 44P D104 J)
Price unavailable
25
Required: 1
TIRE (80/90-17 M/C 44P V244)
Price unavailable
26
Required: 1
TUBE (80/90-17 TR4)
Price unavailable
26
Required: 1
TUBE (80/90-17 TR4)
Price unavailable
27
Required: 1
BAND, RIM (1.40-17)
Price unavailable
27
Required: 1
BAND, RIM (70/90-17)
Price unavailable
28
Required: 1
RIM (1.40-17)
Price unavailable
29
Required: 1
AXLE, WHEEL
Price unavailable
30
Yamaha Motors
Self-Locking Nut90185-12134-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-12046-00
$11.47
You save $2.02
31
Required: 2
WASHER, PLATE
Price unavailable
32
Required: 1
COLLAR, WHEEL
Price unavailable
33
Required: 1
COLLAR
Price unavailable
34
Required: 2
PULLER, CHAIN 2
Price unavailable
35
Required: 2
PLATE 1
Price unavailable
36
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
$3.27
You save $0.58
37
Required: 2
NUT
Price unavailable
38
Required: 2
WASHER, PLATE
Price unavailable
39
Required: 1
CHAIN
Price unavailable
40
Required: 1
. JOINT, CHAIN
Price unavailable
41
Required: 1
BAR, TENSION
Price unavailable
42
Required: 1
BOLT
Price unavailable
$8.07
You save $1.42
44
Yamaha Motors
Nut95380-08700-00
Required: 2
NUT
Supersedes: 95304-08700-00
In stock
Only 2 remaining
$2.84
You save $0.71
45
Required: 2
PIN, COTTER
Price unavailable
46
Required: 1
DRIVE CHAIN KIT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
