2008 Scooter T110 - T110 (2P14) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

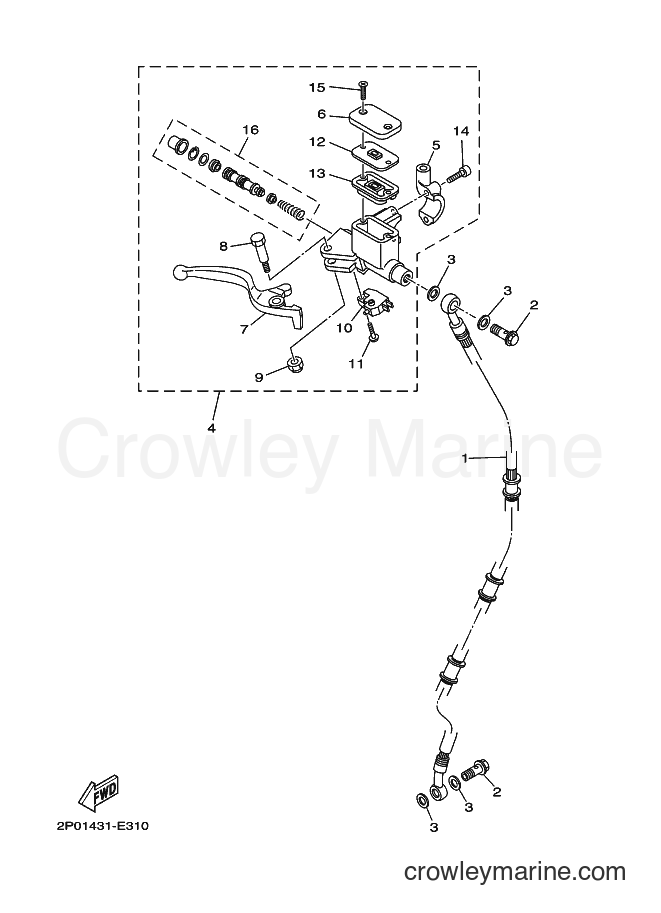

Yamaha Motors T110 (2P14) [010] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
HOSE, BRAKE 1
Price unavailable
2
Required: 2
BOLT, UNION
Price unavailable
Plate Washer
3
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
4
Required: 1
MASTER CYLINDER ASSY
Price unavailable
5
Required: 1
. HOLDER
Price unavailable
6
Required: 1
. CAP, RESERVOIR
Price unavailable
7
Required: 1
. LEVER 2
Price unavailable
8
Required: 1
. BOLT
Price unavailable
9
Required: 1
. NUT, U
Price unavailable
10
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
11
Required: 1
. SCREW,WITH WASHER
Price unavailable
12
Required: 1
. PLATE, DIAPHRAGM
Price unavailable
13
Required: 1
. GASKET, DIAPHRAGM
Price unavailable
14
Required: 2
. BOLT
Price unavailable
Flat Screw
15
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 9870M-04012-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
16
Required: 1
. CYLINDER KIT, MASTER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
