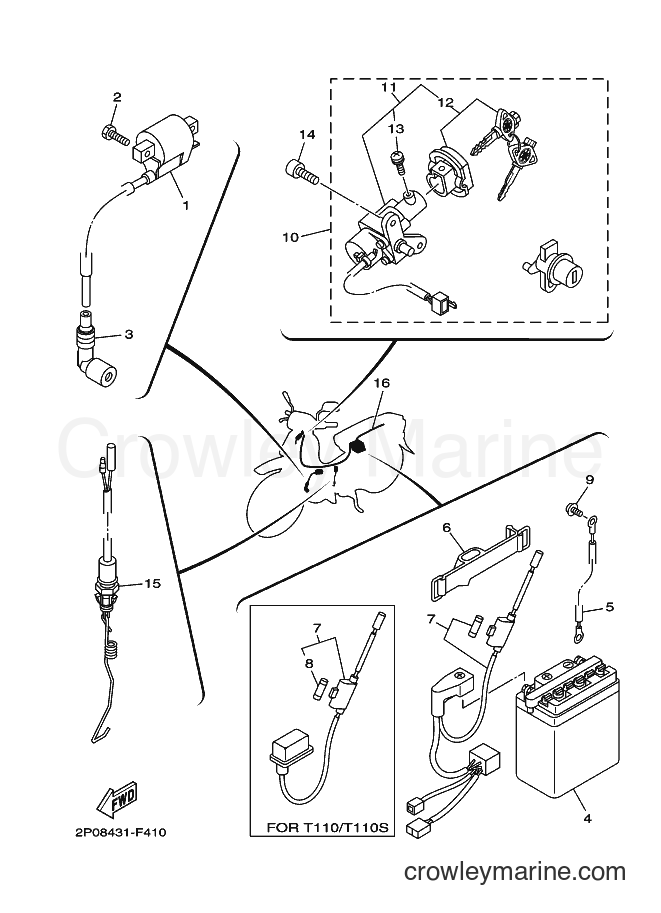

2008 Scooter T110S - T110S (2P08) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110S (2P08) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Bolt
2
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
BATTERY ASSY (YAMAHA BRAND)
Price unavailable
5
Required: 1
WIRE, MINUS LEAD
Price unavailable
6
Required: 1
BAND, BATTERY
Price unavailable
7
Required: 1
FUSE HOLDER ASSY
Price unavailable
7
Required: 1
FUSE HOLDER ASSY
Price unavailable
8
Required: 2
. FUSE (10A)
Price unavailable
9
Required: 1
SCREW,WITH WASHER
Price unavailable
10
Required: 1
MAIN SWITCH SUB ASSY.
Price unavailable
11
Required: 1
. MAIN SWITCH COMP.
Price unavailable
12
Required: 1
. . SHUTTER ASSY.
Price unavailable
12
Required: 1
. . SHUTTER ASSY.
Price unavailable
12
Required: 1
. . SHUTTER ASSY.
Price unavailable
12
Required: 1
. . SHUTTER ASSY.
Price unavailable
13
Required: 1
. . SCREW,WITH WASHER
Price unavailable
BOLT
14
Yamaha Motors
BOLT9131M-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
15
Required: 1
STOP SWITCH ASSY
Price unavailable
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Required: 1
WIRE HARNESS ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
