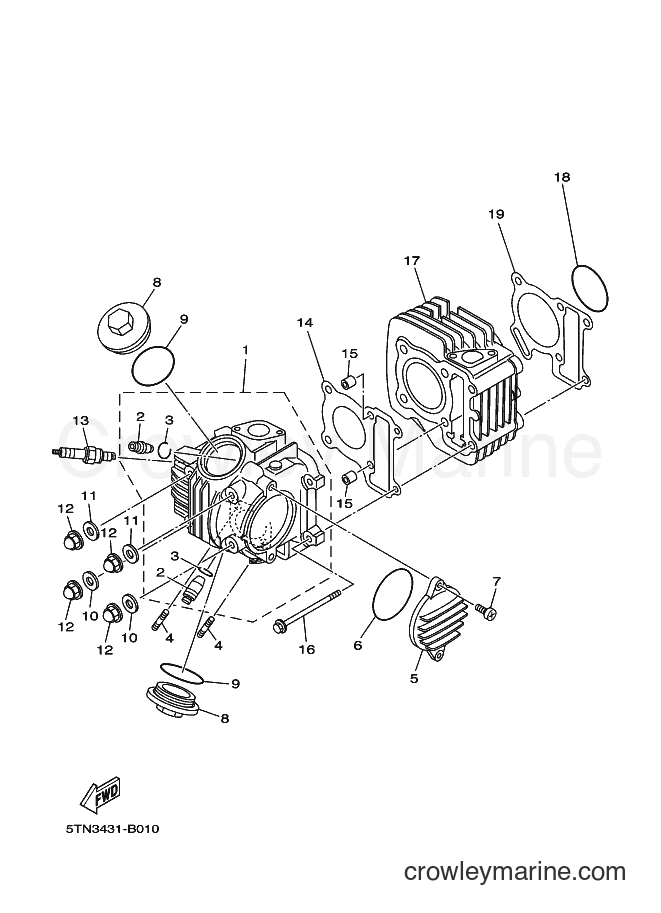

2008 Scooter T110S - T110S (2P08) [010] CYLINDER HEAD diagram
1
Required: 1
HEAD, CYLINDER 1
Price unavailable

2
Yamaha Motors
EXHAUST VALVE GUIDE4ST-11134-11-00
Required: 2
. GUIDE, VALVE 2
$67.99
You save $12.00
$2.21
You save $0.39

4
Yamaha Motors
BOLT22F-14651-00-00
Required: 2
BOLT, STUD
Supersedes: 90116-06804-00
$6.37
You save $1.12
5
Required: 1
COVER, CYLINDER HEAD SIDE 1
Price unavailable
In stock
Only 4 remaining
$0.84
You save $0.15
7
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 2
SCREW, PAN HEAD
$2.96
You save $0.52
8
Required: 2
COVER, CYLINDER HEAD SIDE 2
Price unavailable

9
Yamaha Motors
O-Ring93210-44704-00
Required: 2
O-RING
Supersedes: 93210-44889-00
In stock
5+ in stock
$7.22
You save $1.27

10
Yamaha Motors
Plate Washer90201-080L7-00
Required: 2
WASHER, PLATE
Supersedes: 90201-08609-00
$3.44
You save $0.61
$8.07
You save $1.42
12
Required: 4
NUT, CROWN
Price unavailable
13
Required: 1
PLUG, SPARK (NGK C6HSA)
Price unavailable

14
Yamaha Motors
Cylinder Head Gasket5TN-E1181-00-00
Required: 1
GASKET, CYLINDER HEAD 1
$20.39
You save $3.60
In stock
Only 1 remaining
$2.25
You save $0.40
$2.38
You save $0.42
17
Required: 1
CYLINDER
Price unavailable
18
Required: 1
O-RING
Price unavailable
19
Required: 1
GASKET, CYLINDER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors T110S (2P08) [010] - CYLINDER HEAD](https://cdn.crowleymarine.com/yamaha/Z9g8tnml.png)
