2008 Scooter T110S - T110S (2P08) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

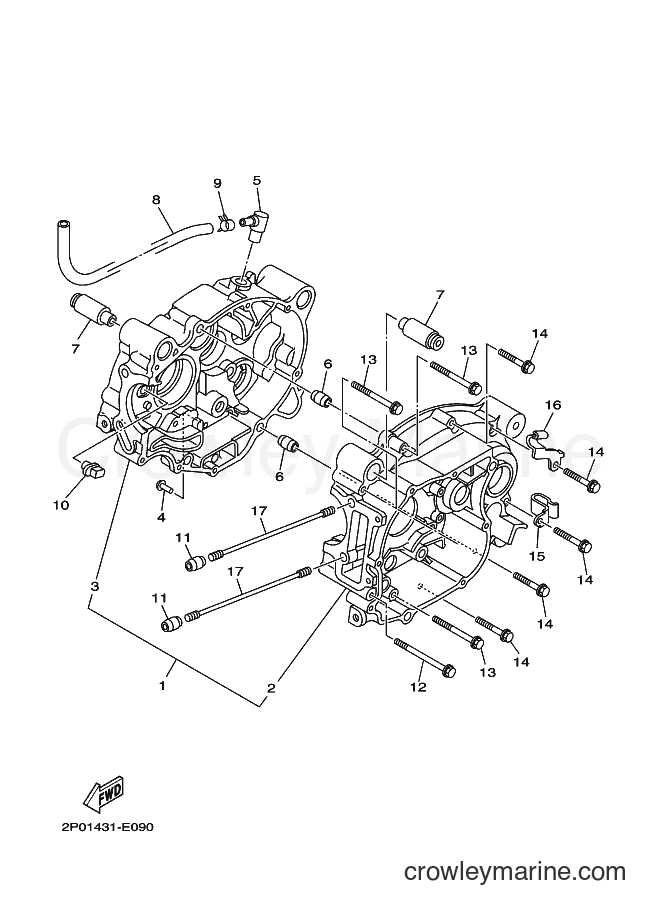

Yamaha Motors T110S (2P08) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
. CRANKCASE 1
Price unavailable
2
Required: 1
. CRANKCASE 1
Price unavailable
3
Required: 1
. CRANKCASE 2
Price unavailable
Spring Hook
4
Yamaha Motors
Spring Hook5HV-E6346-00-00
Required: 1
HOOK, SPRING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
5
Required: 1
BREATHER
Price unavailable
7
Required: 2
DAMPER 1
Price unavailable
8
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip (3YX)
9
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 1
CLIP
Supersedes: 90467-13064-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
NOZZLE 3
Price unavailable
Flange Bolt
12
Yamaha Motors
Flange Bolt95022-06080-00
Required: 1
BOLT, FLANGE
Supersedes: 9502L-06080-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
13
Required: 3
BOLT, FLANGE
Price unavailable
14
Required: 5
BOLT, FLANGE
Price unavailable
Clamp
15
Yamaha Motors
Clamp90465-10833-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$0.70
$0.60
You save $0.10
More details
Clamp
16
Yamaha Motors
Clamp90462-10801-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
Stud Bolt
17
Yamaha Motors
Stud Bolt90116-08807-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
