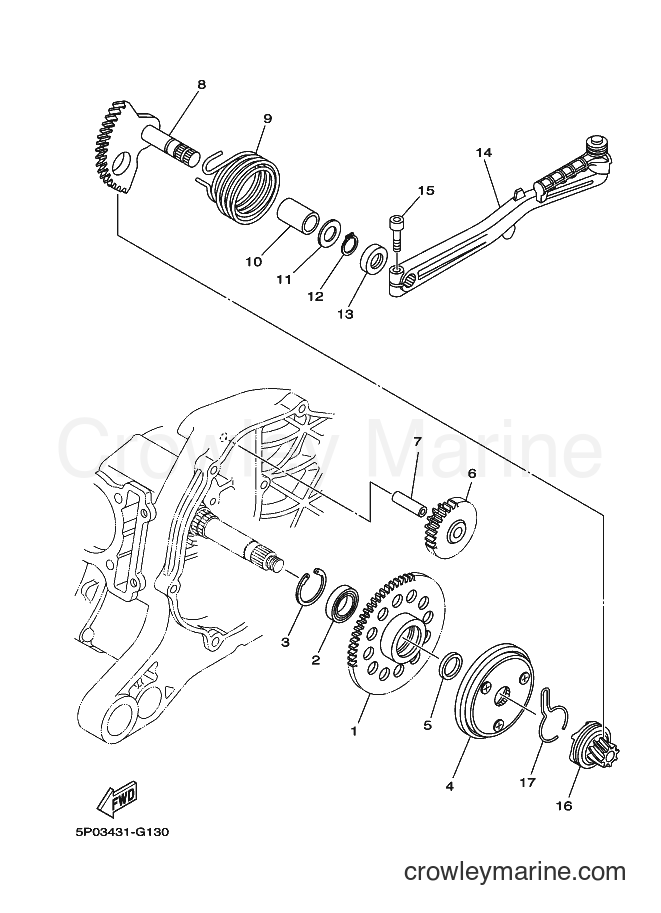

2008 Scooter AT135 - AT135 (5P11) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135 (5P11) [010] - STARTER
Change View:
1
Required: 1
WHEEL, STARTER
Price unavailable
2
Required: 1
BEARING
Price unavailable
3
Required: 1
CIRCLIP
Price unavailable
4
Required: 1
STARTER CLUTCH ASSY
Price unavailable
5
Required: 1
COLLAR
Price unavailable
6
Required: 1
GEAR, IDLER 1
Price unavailable
7
Required: 1
SHAFT 1
Price unavailable
8
Required: 1
KICK SHAFT ASSY
Price unavailable
Torsion Spring
9
Yamaha Motors
Torsion Spring90508-32768-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
10
Required: 1
BUSH, SOLID
Price unavailable
Plain Washer
11
Yamaha Motors
Plain Washer90201-154E8-00
Required: 1
WASHER, PLATE (T=1.0)
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Circle Clip
12
Yamaha Motors
Circle Clip99009-15400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
OIL SEAL
Price unavailable
14
Required: 1
KICK CRANK ASSY
Price unavailable
16
Required: 1
KICK PINION ASSY
Price unavailable
17
Required: 1
CLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
