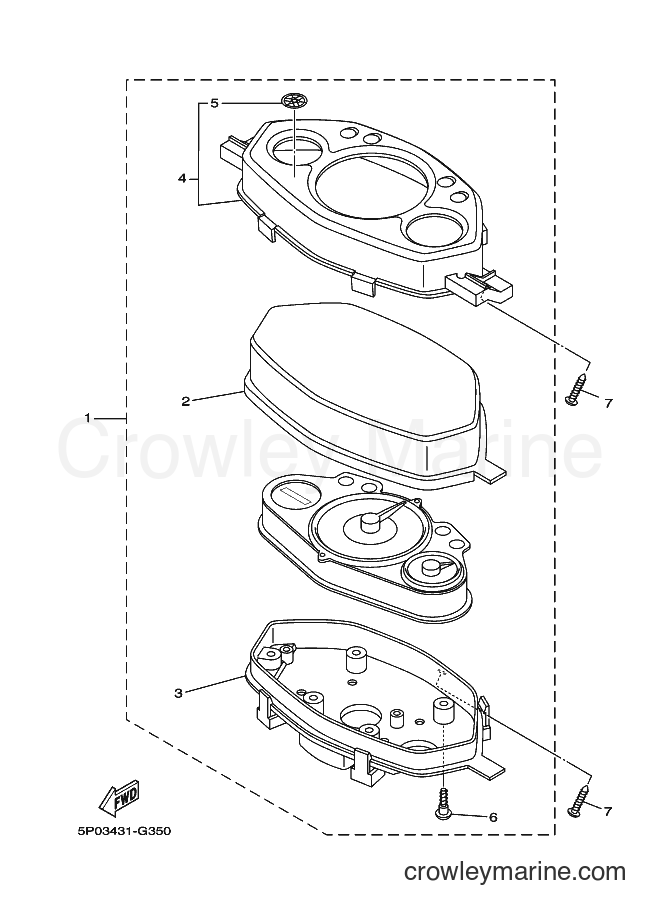

2008 Scooter AT135 - AT135 (5P11) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT135 (5P11) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. LENS, SPEEDOMETER
Price unavailable
3
Required: 1
. CASE, SPEEDOMETER LOWER
Price unavailable
4
Required: 1
. CASE, SPEEDOMETER UPPER
Price unavailable
5
Required: 1
. . TUNING FORK MARK
Price unavailable
Tapping Screw
6
Yamaha Motors
Tapping Screw97707-30014-00
Required: 6
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
Truss Screw
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
